The new KEYDIY KD5C harness is designed specifically for Volkswagen 5C key programming, helping locksmiths complete difficult soldering jobs with better stability and efficiency.

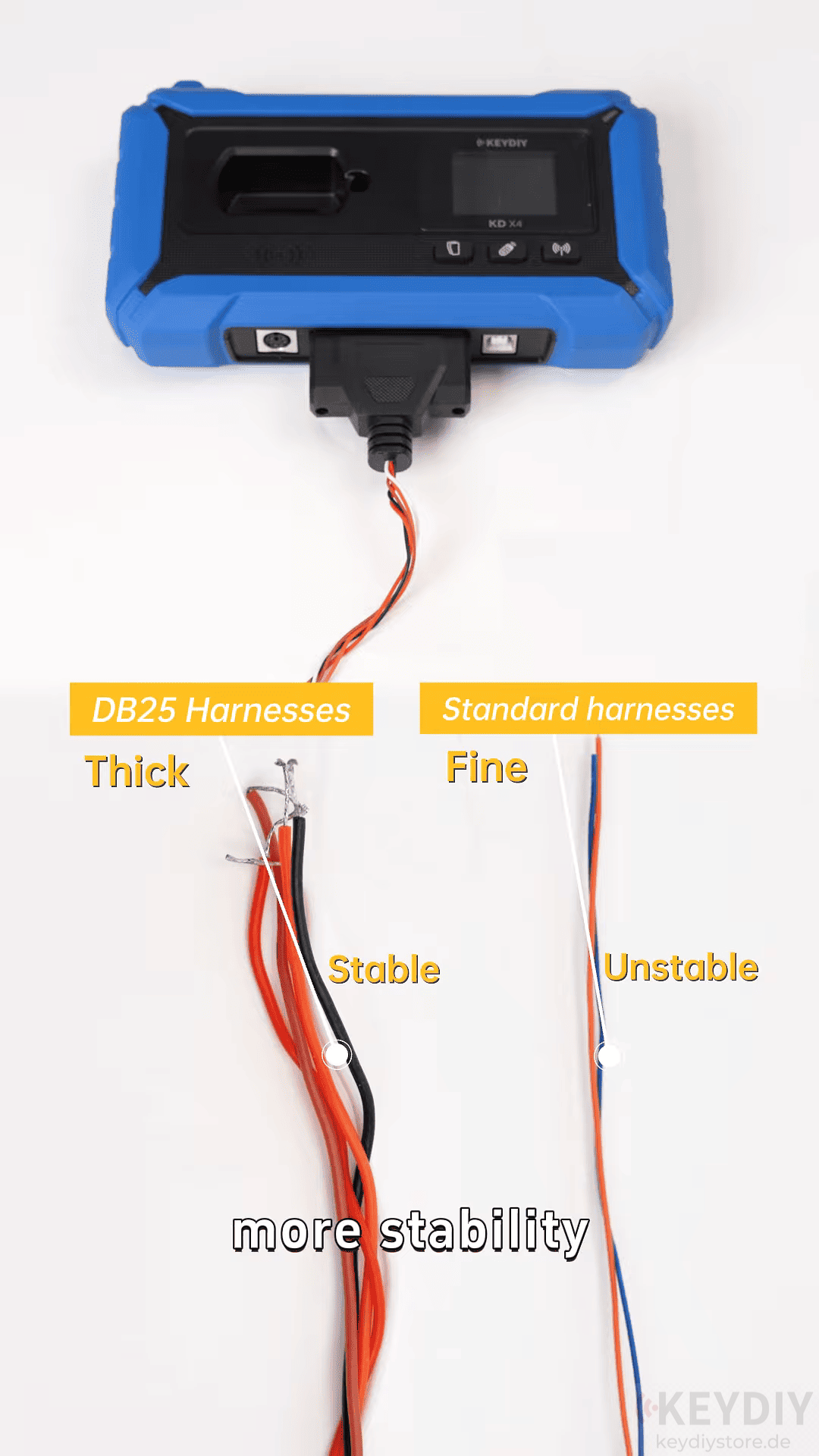

Unlike standard harnesses, the KD5C harness uses thicker core wires for improved conductivity and more stable communication during data reading and key generation.
This harness is specifically designed for KEYDIY KD-X3. The KEYDIY KD-X4 full kit does not include this dedicated wiring harness; however, a solderless card is available as a replacement.
Preparation

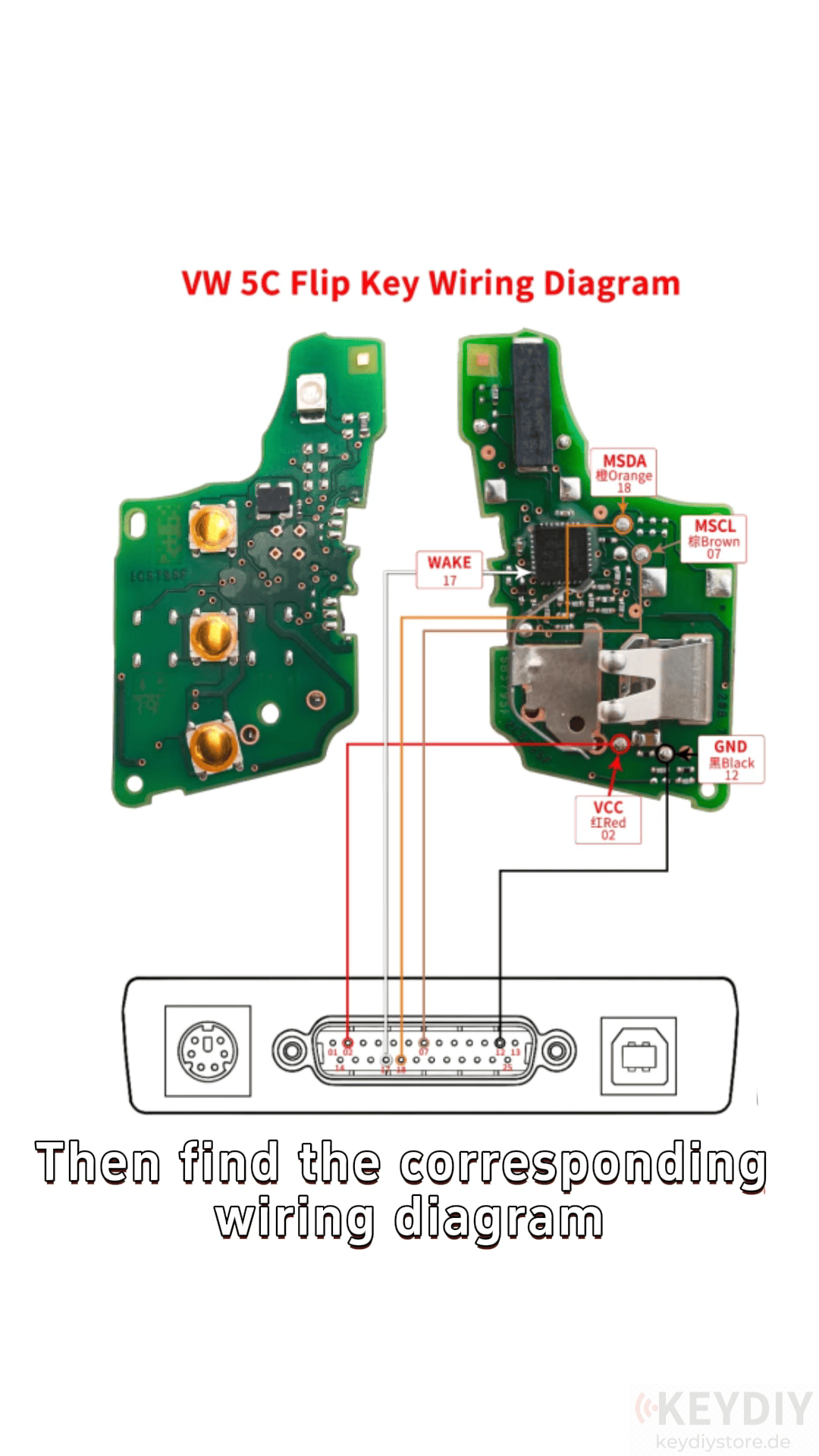

Find the corresponding wiring diagram in the software and prepare the soldering area carefully.

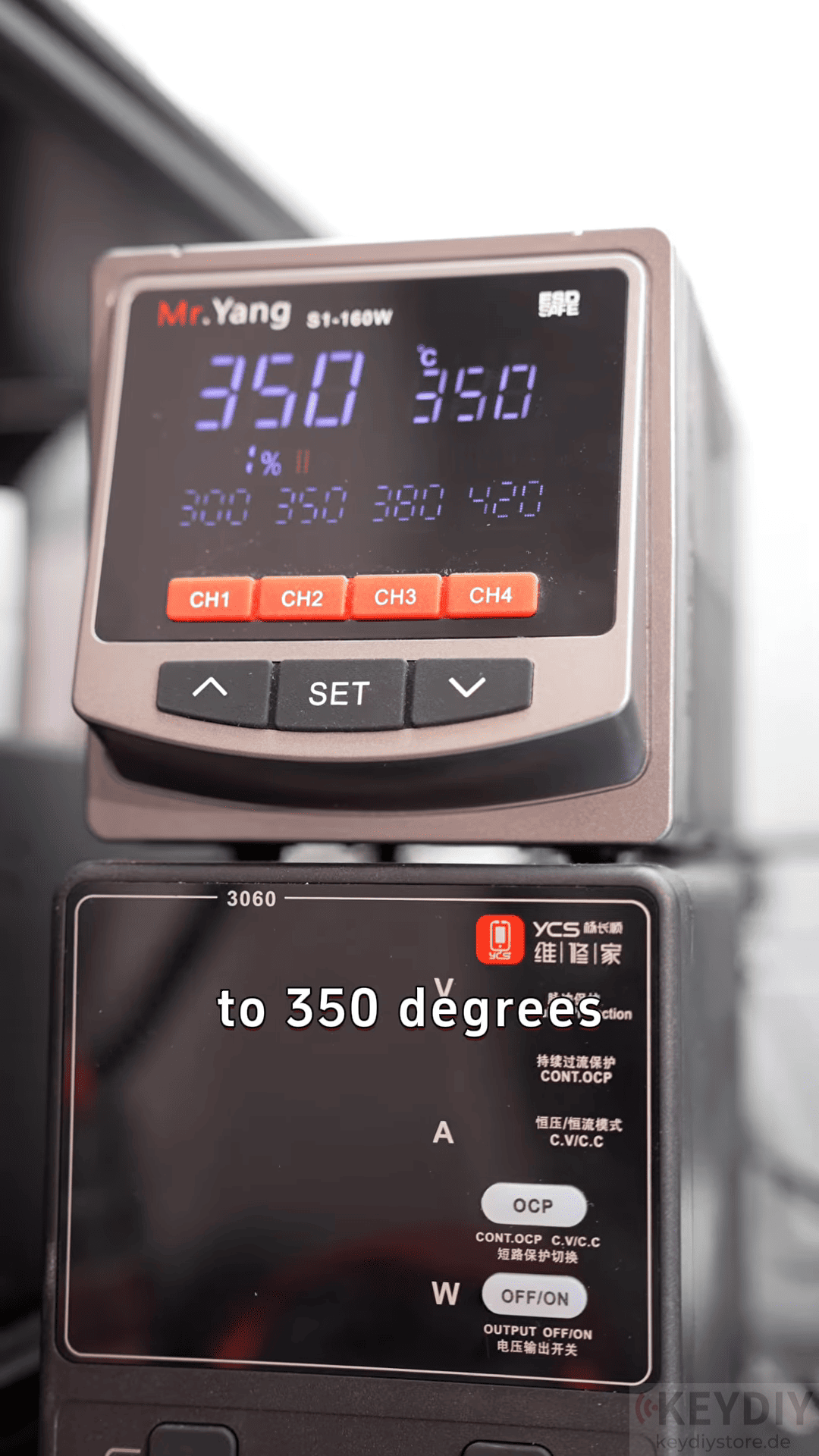

Set soldering iron temperature to approximately 350°C.
Clean the Chip Pins

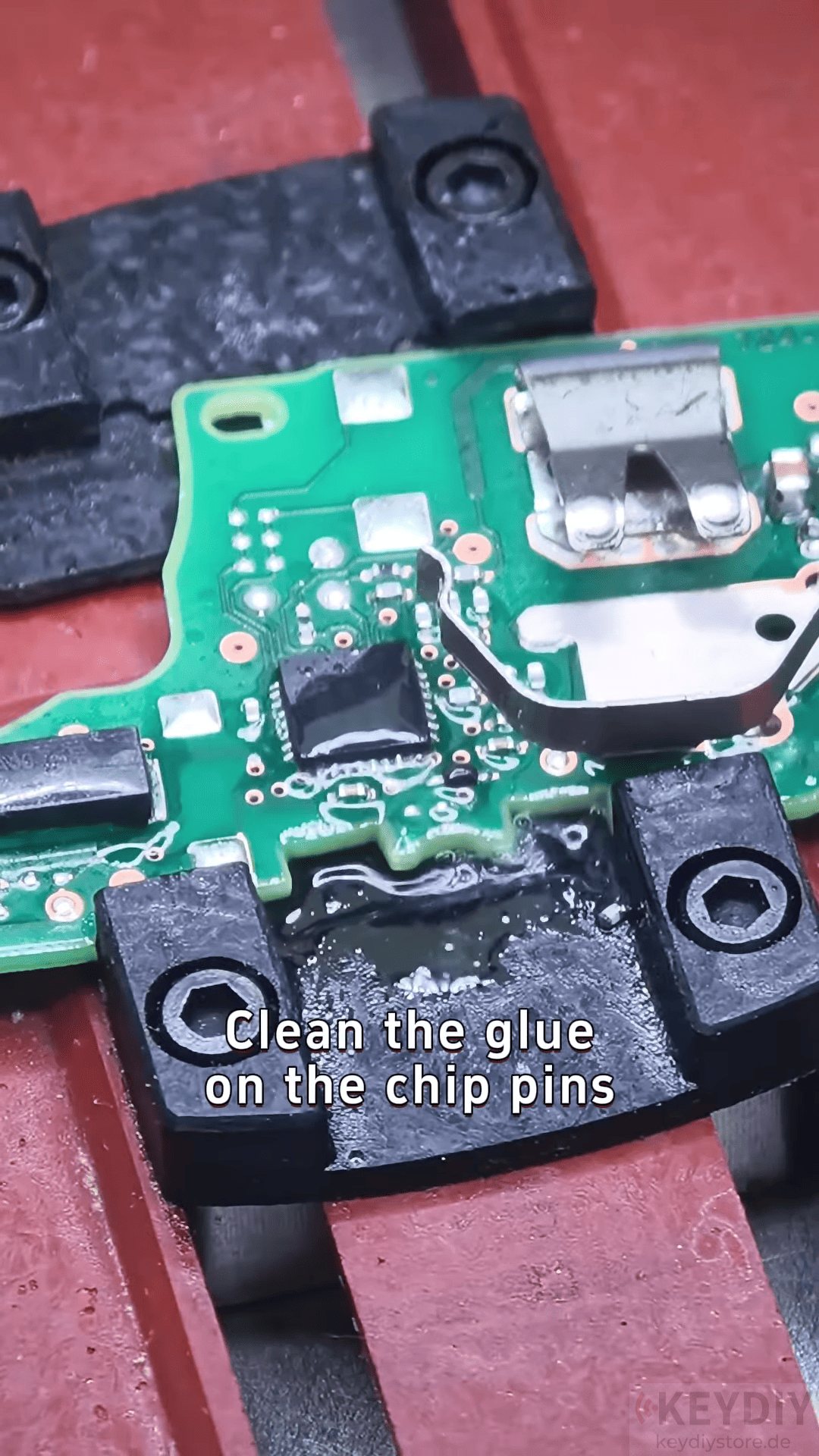

Use glue remover to clean the protective glue around the chip pins.

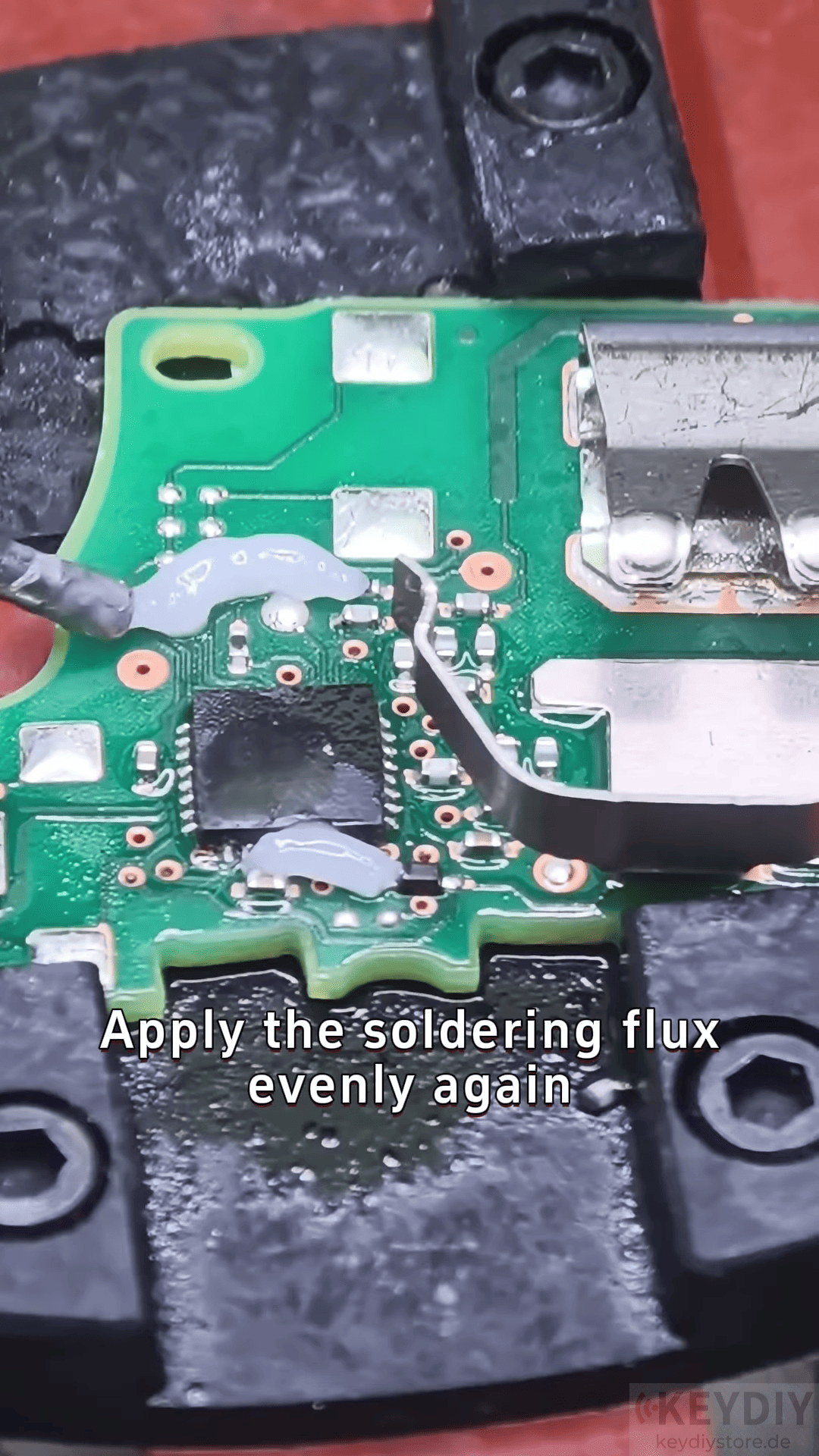

Then apply soldering flux evenly.
Tin the Pins
Pre-tin the chip pins carefully before connecting wires.
This helps improve solder quality and connection stability.
Connect the Harness

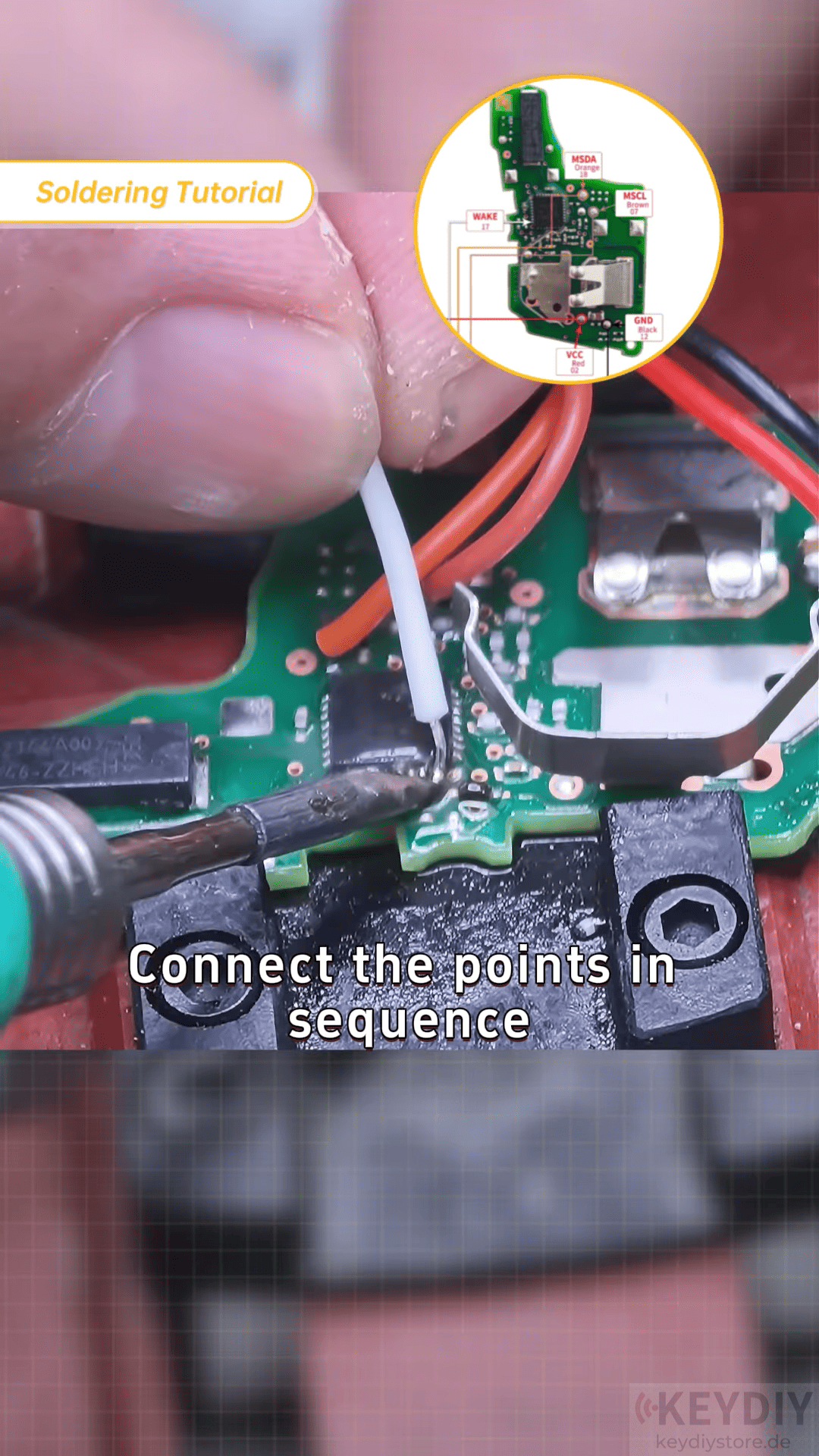

Solder the KD5C harness wires to the corresponding points according to the wiring diagram.
Tip:
Using a magnifying glass is highly recommended for precise pin alignment and clearer solder joint visibility.
Read Data & Generate Key

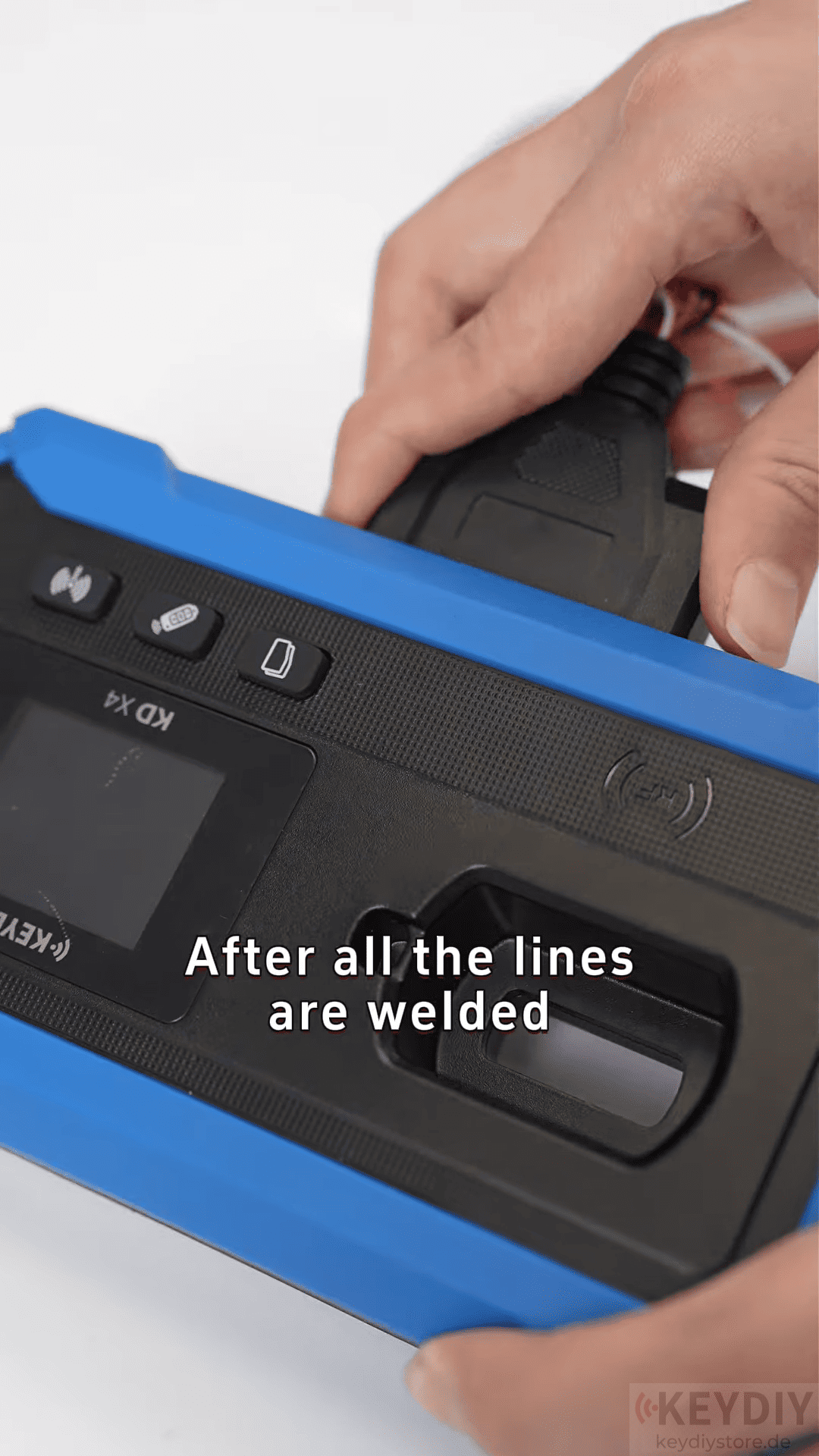

After soldering is complete, connect the harness to KD-X4 Locksmith’s Universal Tool device.
Select Read Chip Data

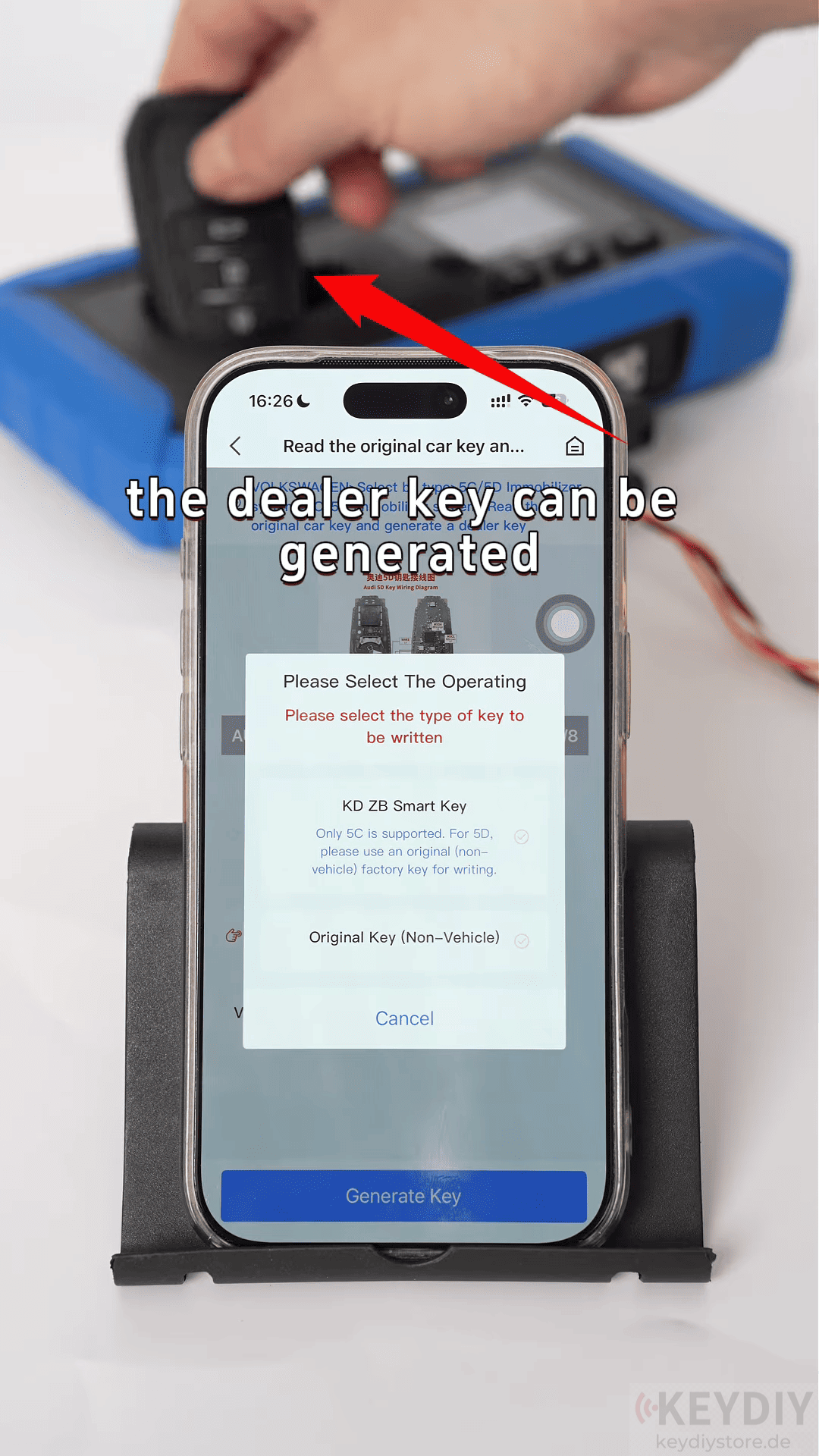

Once data reading is successful, the dealer key can be generated successfully.
With the dedicated KD5C harness, Volkswagen 5C programming becomes more organized, stable, and efficient for professional locksmith work.
