MQB49 5C key, often found in 5C or 5D variants, is a smart key with encrypted chips that require precise handling during all-keys-lost scenarios or key copying. The problem? Wiring diagrams in apps or manuals don’t always align perfectly with the physical key layout.
Common issues include:
Misaligned pins: One wrong wire connection can prevent chip detection or data reading.
Visual vs. functional mismatches: Diagrams might show traces that don’t match the key’s actual circuitry.
Tool limitations: Basic programmers fail here, but the KEYDIY KD-X4 excels with its multi-function buttons for detection and generation.
This isn’t just theory—it’s based on hands-on workshop experience where a single wiring error turns a 10-minute job into hours of troubleshooting. Search terms like “MQB495C key wiring diagram” or “VAG key programming errors” flood forums, highlighting how widespread this is.

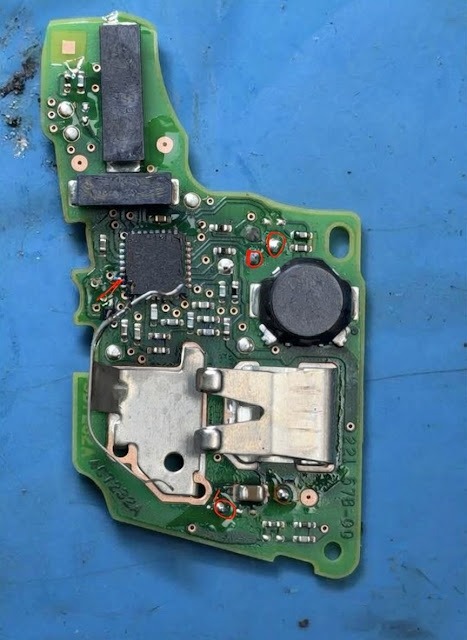

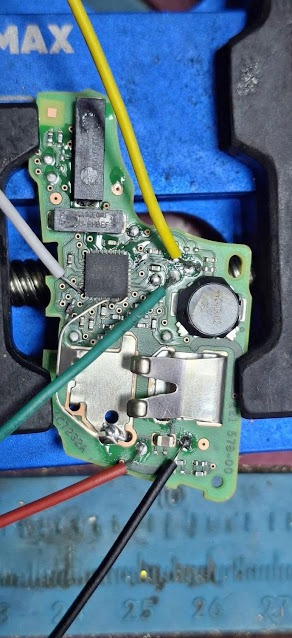

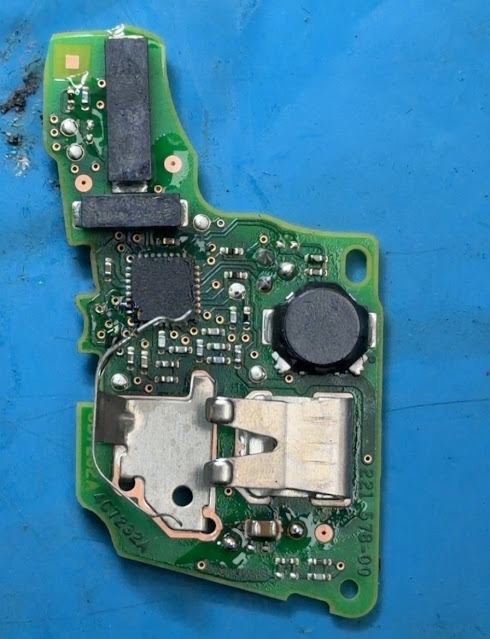

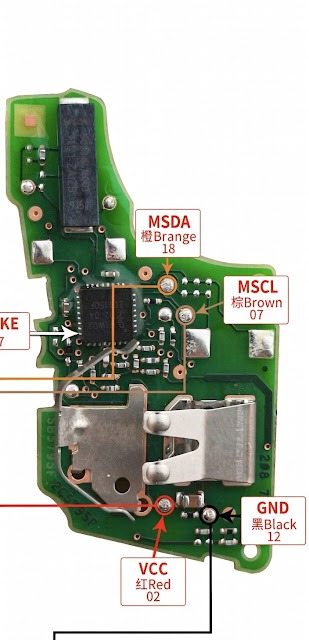

In case you encounter the same situation, check the diagram below, which may help you a lot
How the KEYDIY KD-X4 Solves It
The KD-X4 Locksmith’s universal tool uses its three main buttons to cut through the confusion:
Button 1: Transponder detection (short press reads chip type/ID; long press enters all-keys-lost or conversion mode) – quickly identifies MQB49 5C chips even with wiring mismatches.
Button 2: Remote copy & generation – copy original buttons, then generate on a KD blank key.
Button 3: Frequency scan + battery/leakage check
Have you battled MQB key wiring issues? Share your tips below! For full KD-X4 tutorials and VAG programming guides, search
