When it comes to Volkswagen immobilizer systems, especially the 5C platform, many technicians used to face delays and limitations. Now, with KEYDIY KD-X4, the process becomes accessible, efficient, and reliable for both professionals and advanced DIY users.
Step 1: Connect and Read Information
Start by connecting the device to the vehicle’s OBD port.
1. Read key information

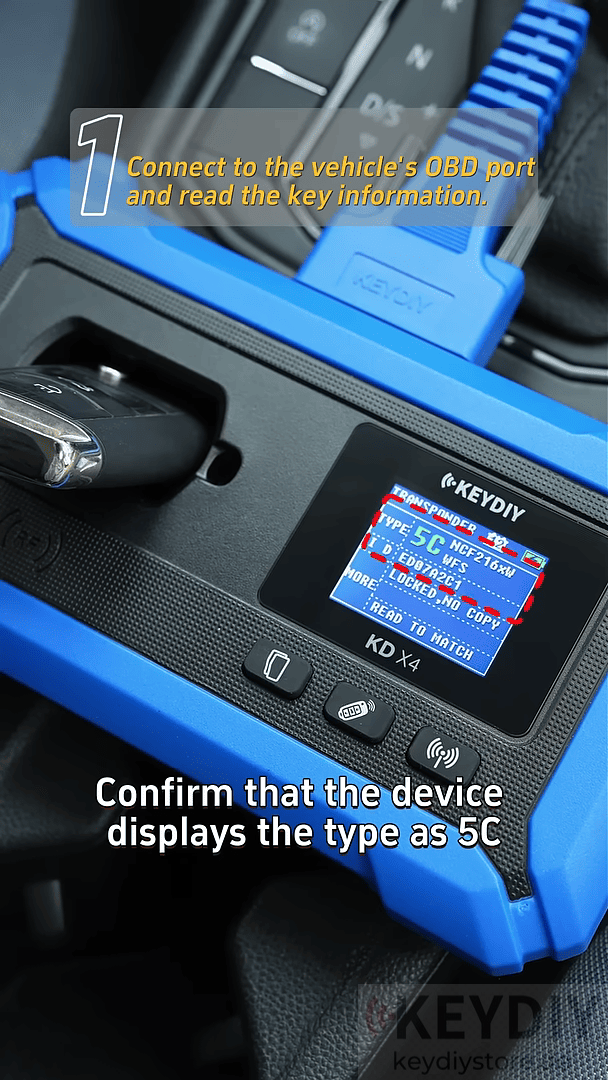

2. Confirm the IMMO type is 5C

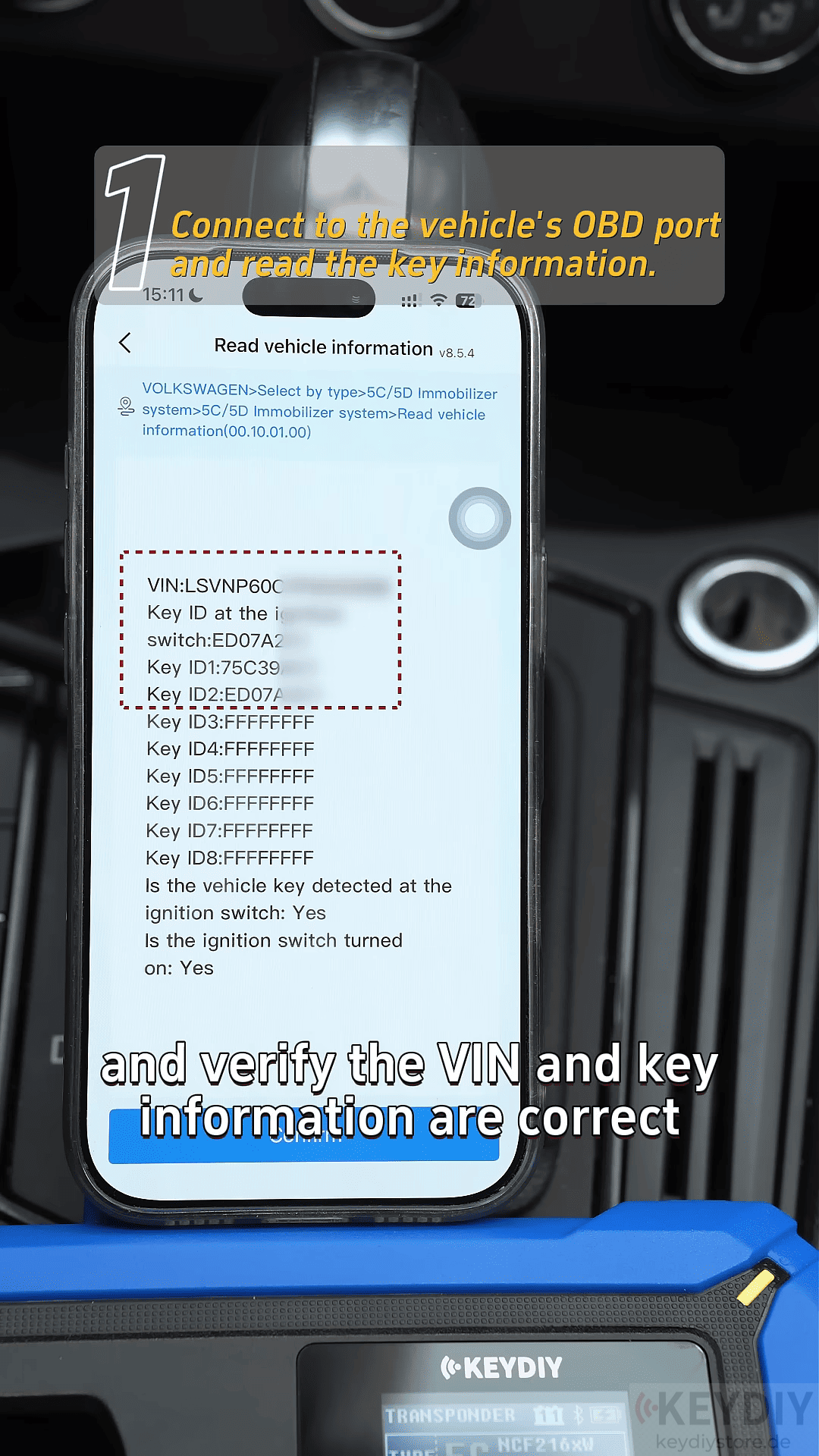

3. Retrieve vehicle data and verify VIN
Step 2: Disassemble the Original Key

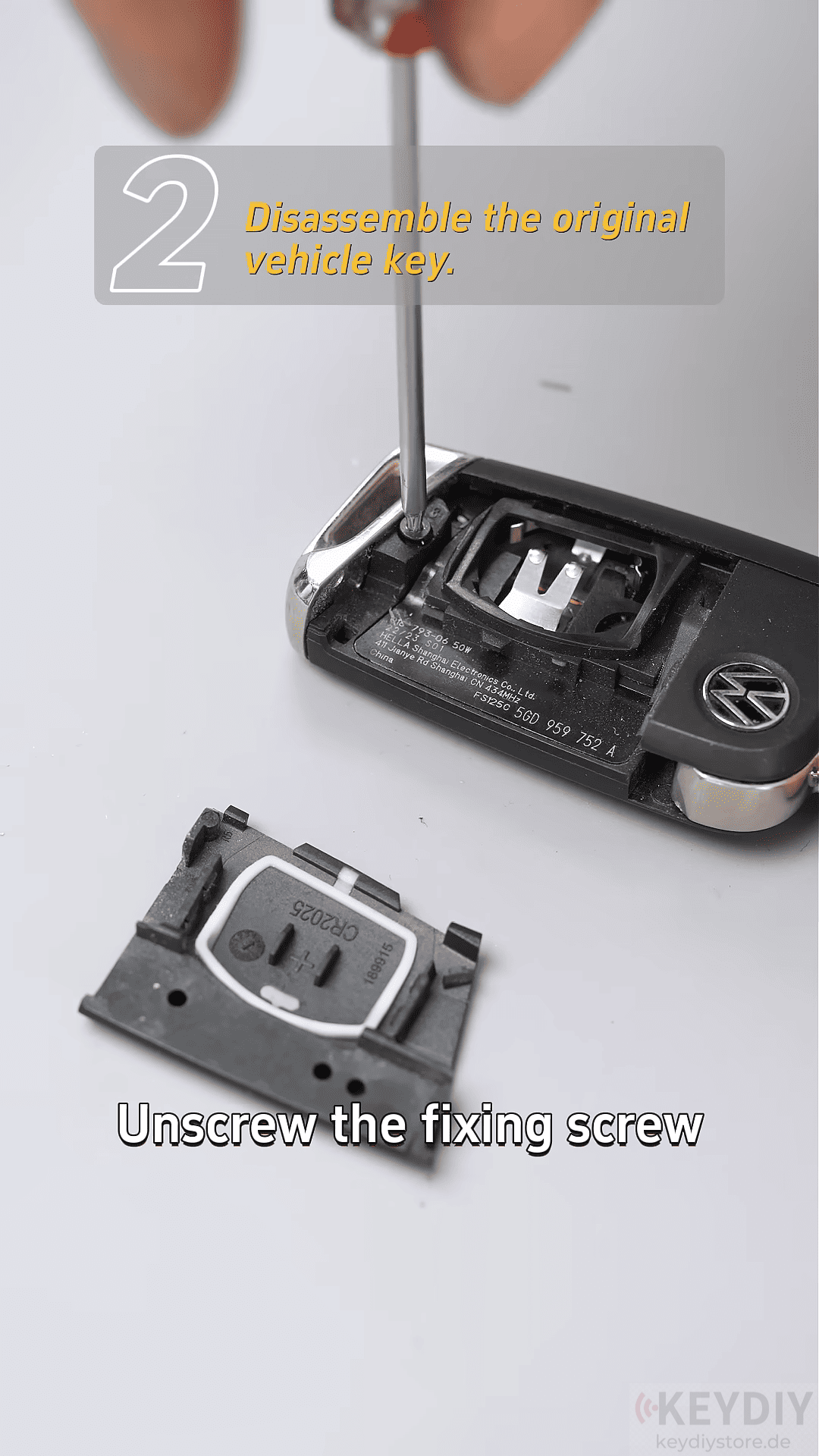

1. Remove battery and screws

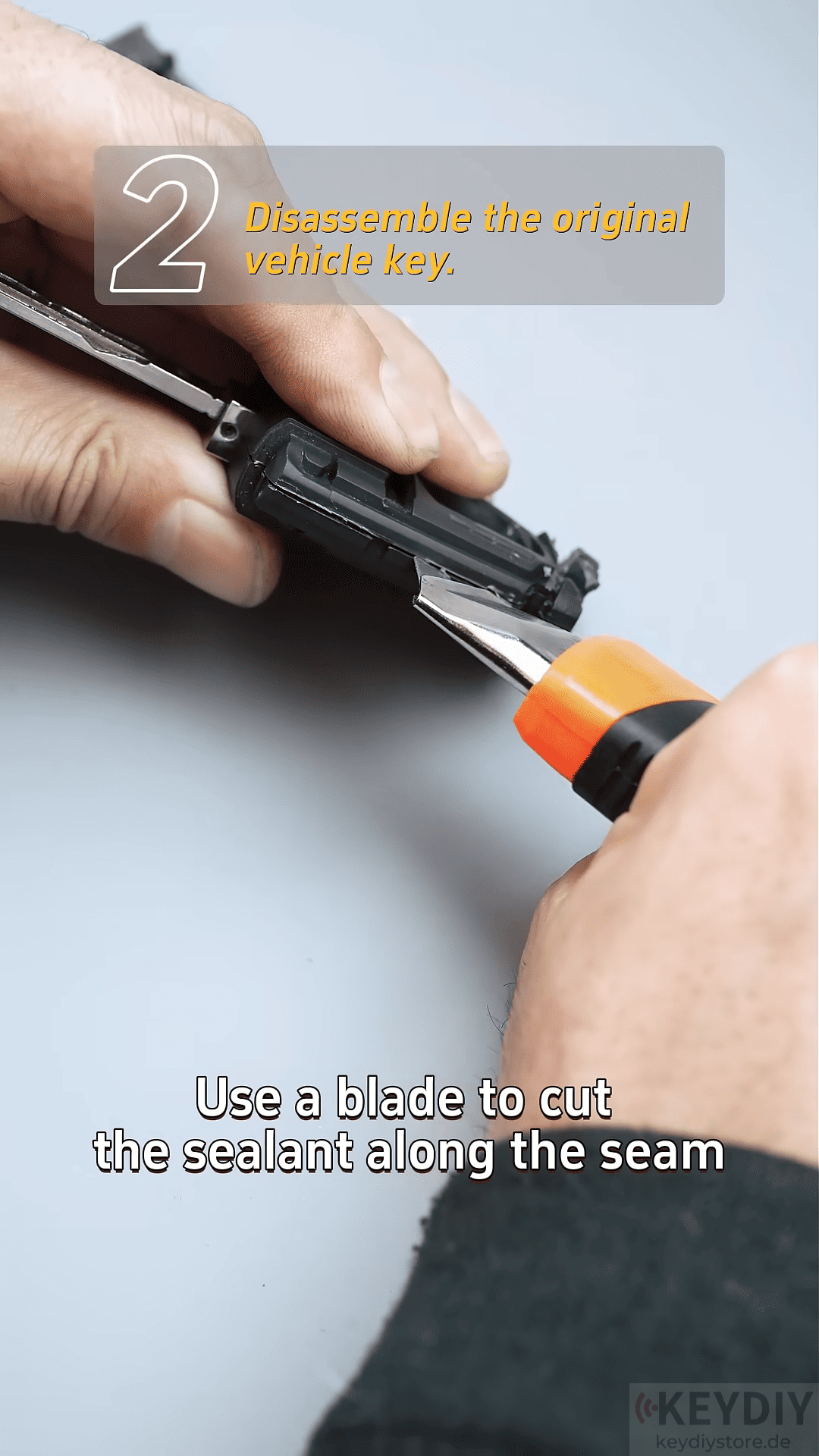

2. Cut sealant along the edges
3. Separate the casing with proper tools
Tip: Keep all parts organized to avoid loss.
Step 3: Soldering and Device Connection
1. Follow the wiring diagram precisely

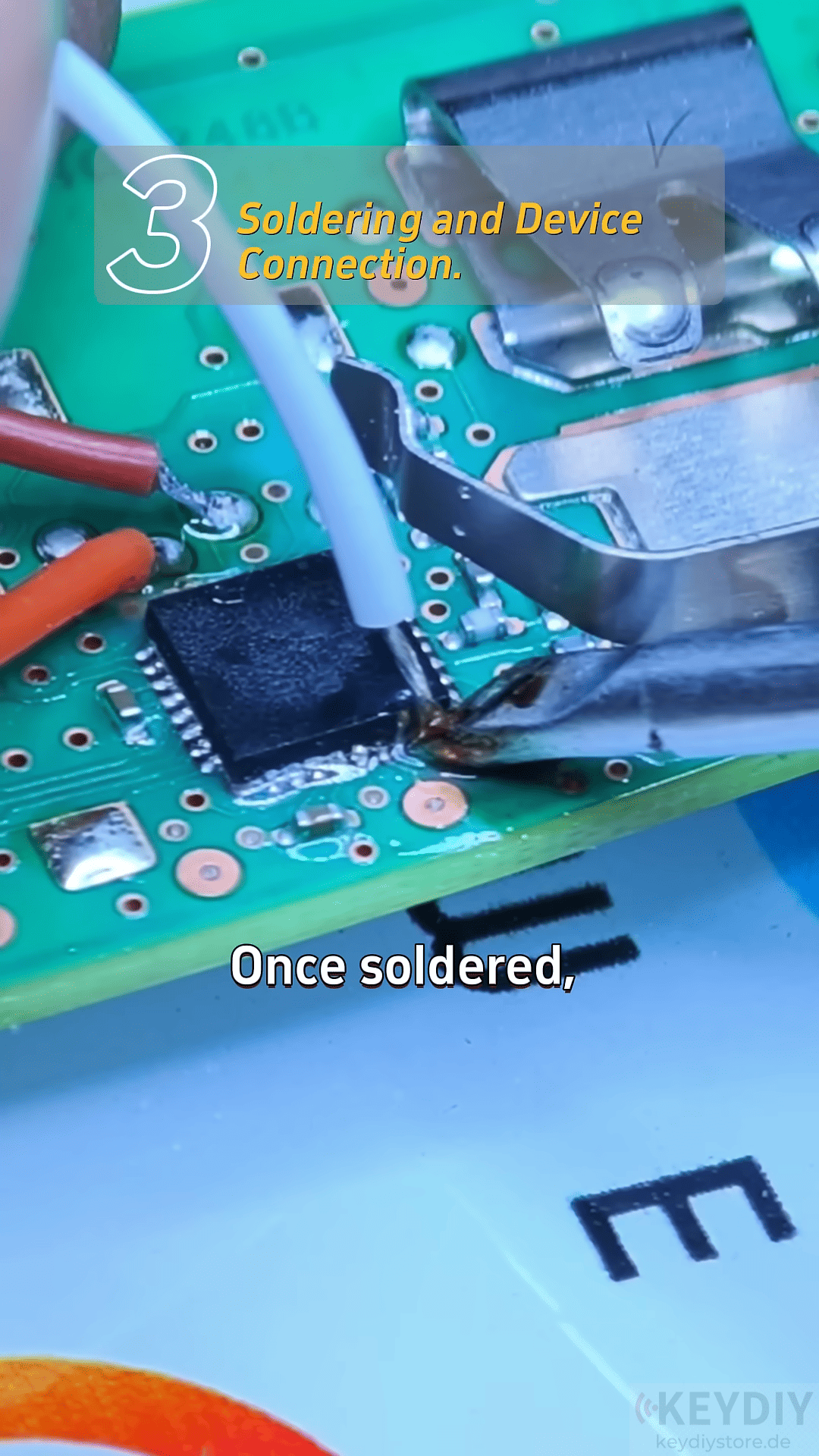

2. Solder wires to correct chip points
3. Connect to KD-X4 key programmer for communication
Step 4: Generate Data Key

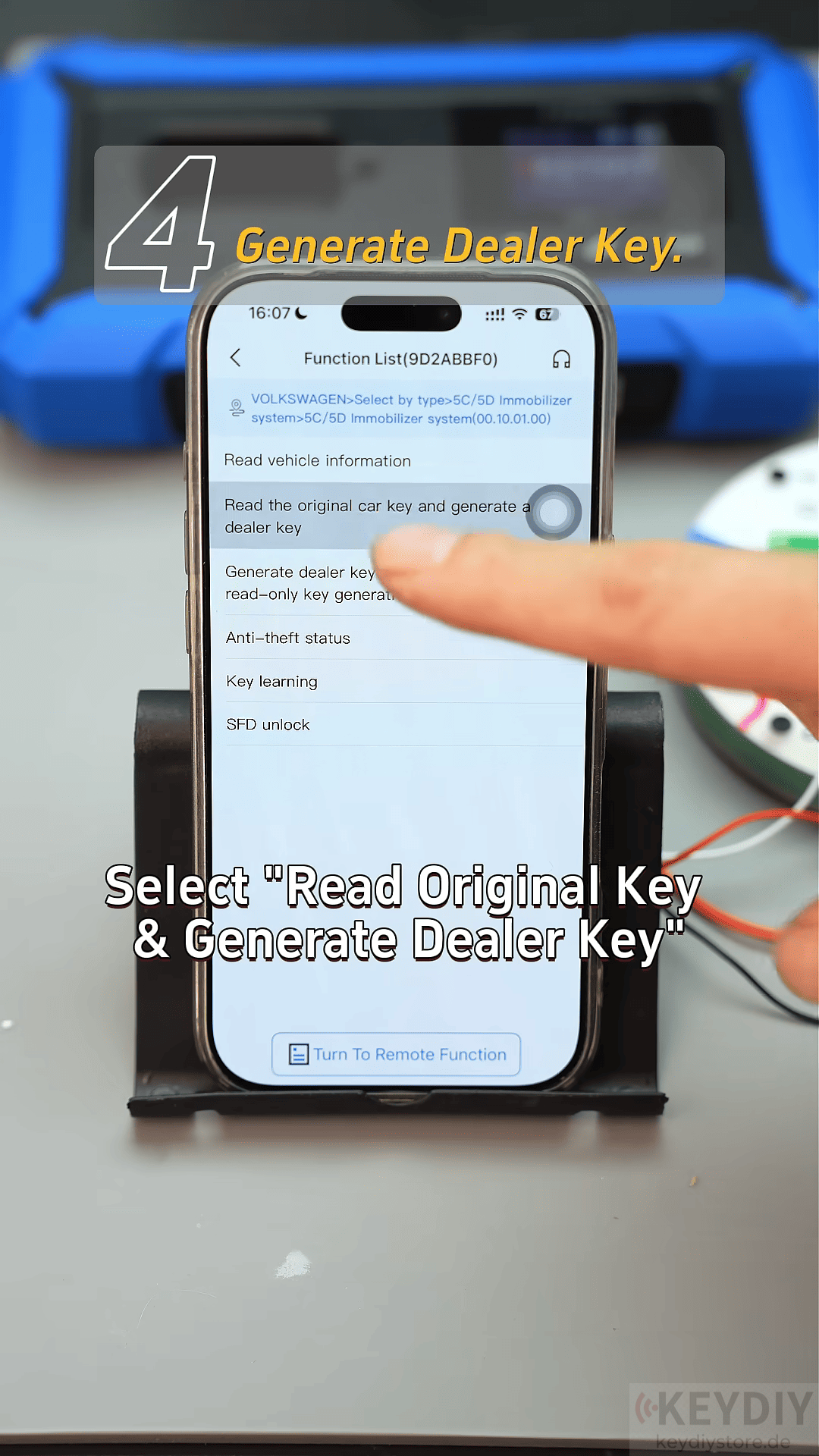

1. Select “Read Original Key”
2. Generate the data key
3. Read chip data successfully

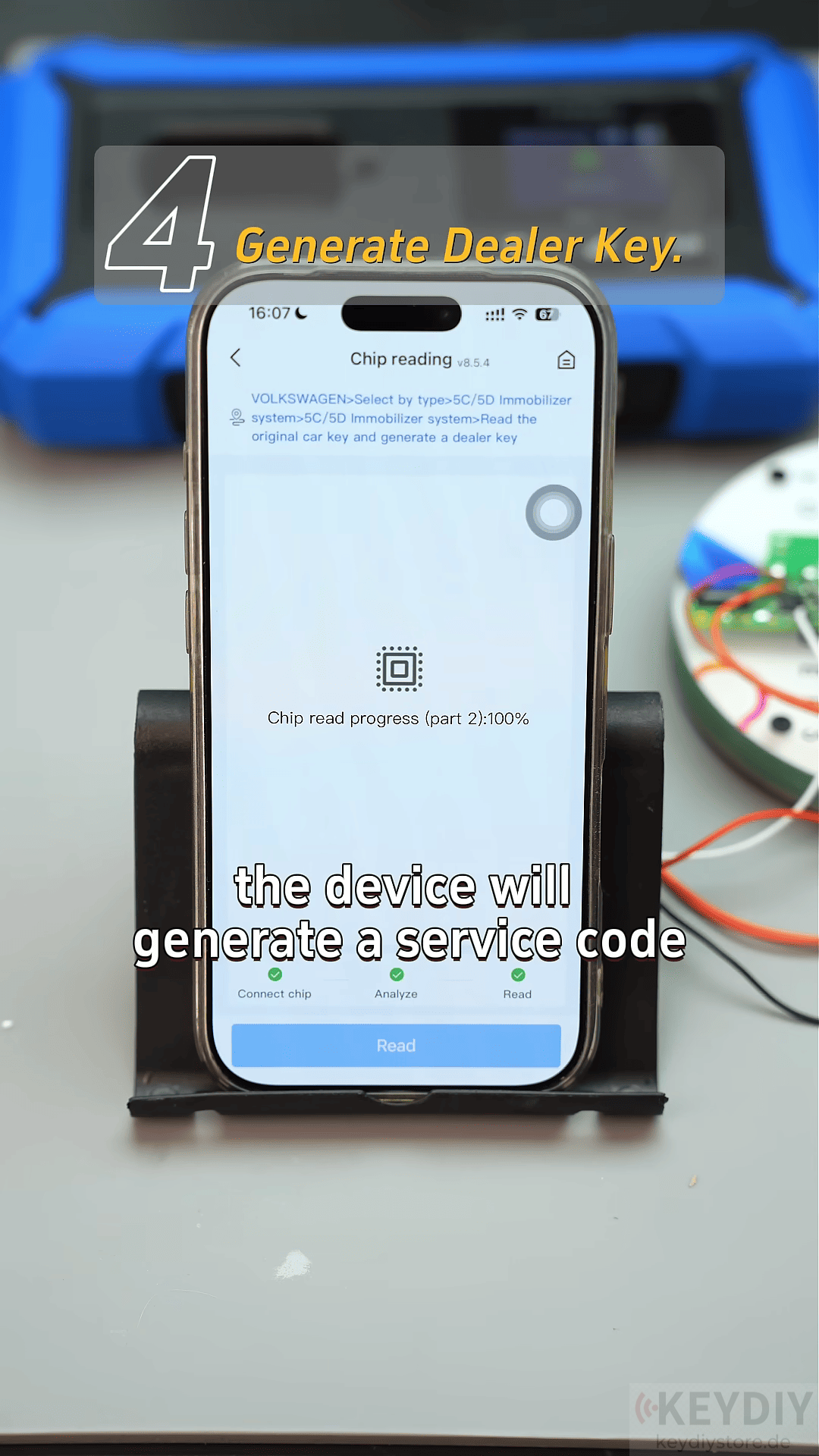

4. Obtain service code automatically
Step 5: Write the New Key

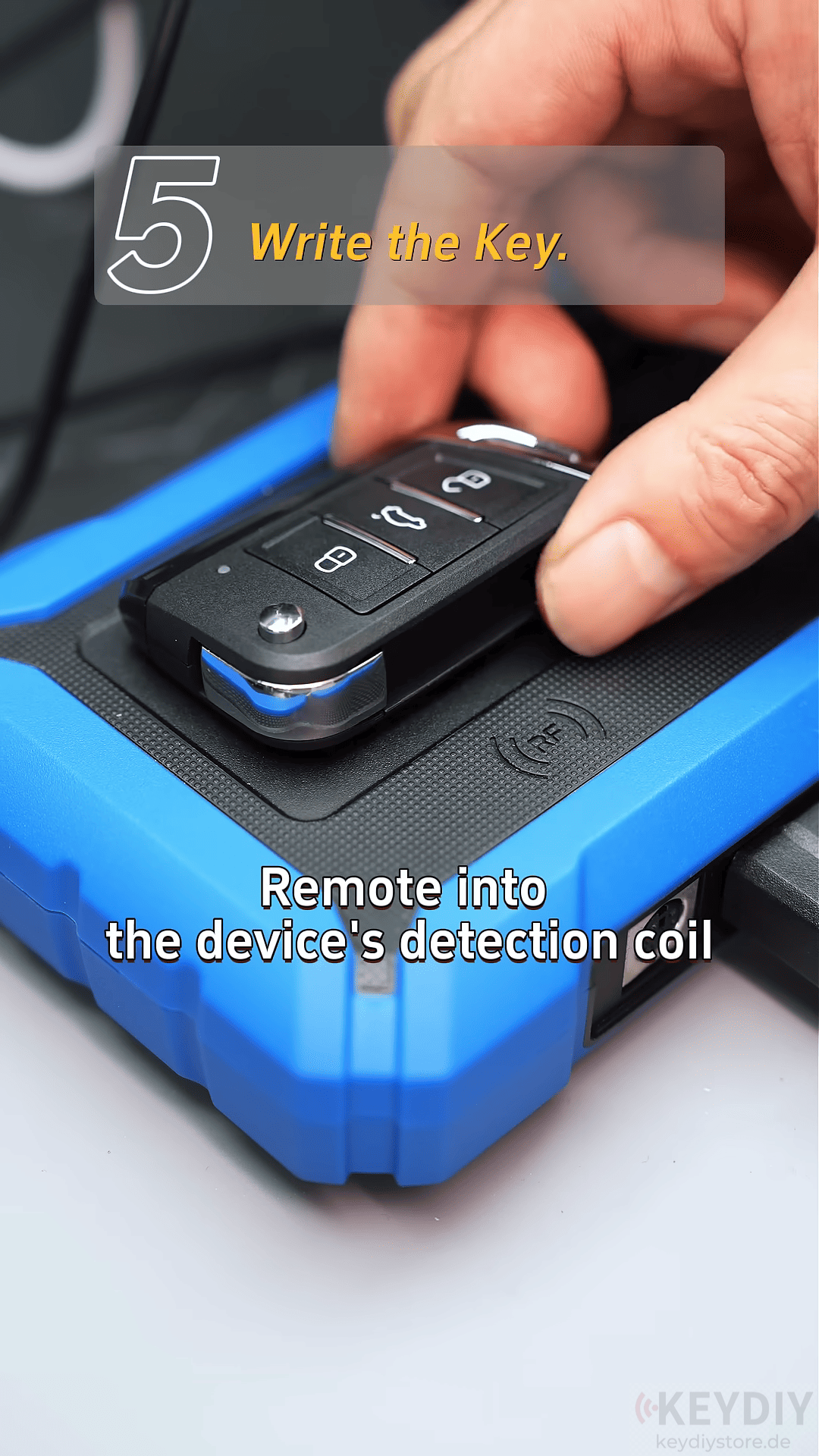

1. Place KD smart remote into detection coil
2. Write data using KEYDIY KD-X4
3. Confirm successful key addition
Final Step: Place the new key near the vehicle sensing area to complete matching.
With KD-X4 Locksmith’s Universal Tool, Volkswagen 5C key programming is no longer a waiting game. From reading original key data to successfully adding a new key, the entire process is streamlined and reliable.
