The combination of KEYDIY KD-X4 and GODIAG solder-free adapter for BDC2 BDC3 provides a powerful and efficient solution for BMW key cloning. This method allows technicians to duplicate encrypted BDC3 smart keys without soldering, reducing risk and improving workflow.
In this guide, we will show how to use KEYDIY KD-X4 together with the GODIAG solder-free adapter to complete BMW BDC3 key cloning step by step.
Before starting, prepare the following tools:
KEYDIY KD-X4 key programmer
GODIAG solder-free adapter for BDC2 BDC3
Original BMW key
New blank key
Stable power supply
Step 1 Enter KEYDIY KD-X4 Function
Open KEYDIY KD-X4 device and follow these steps:
Enter Remote Function

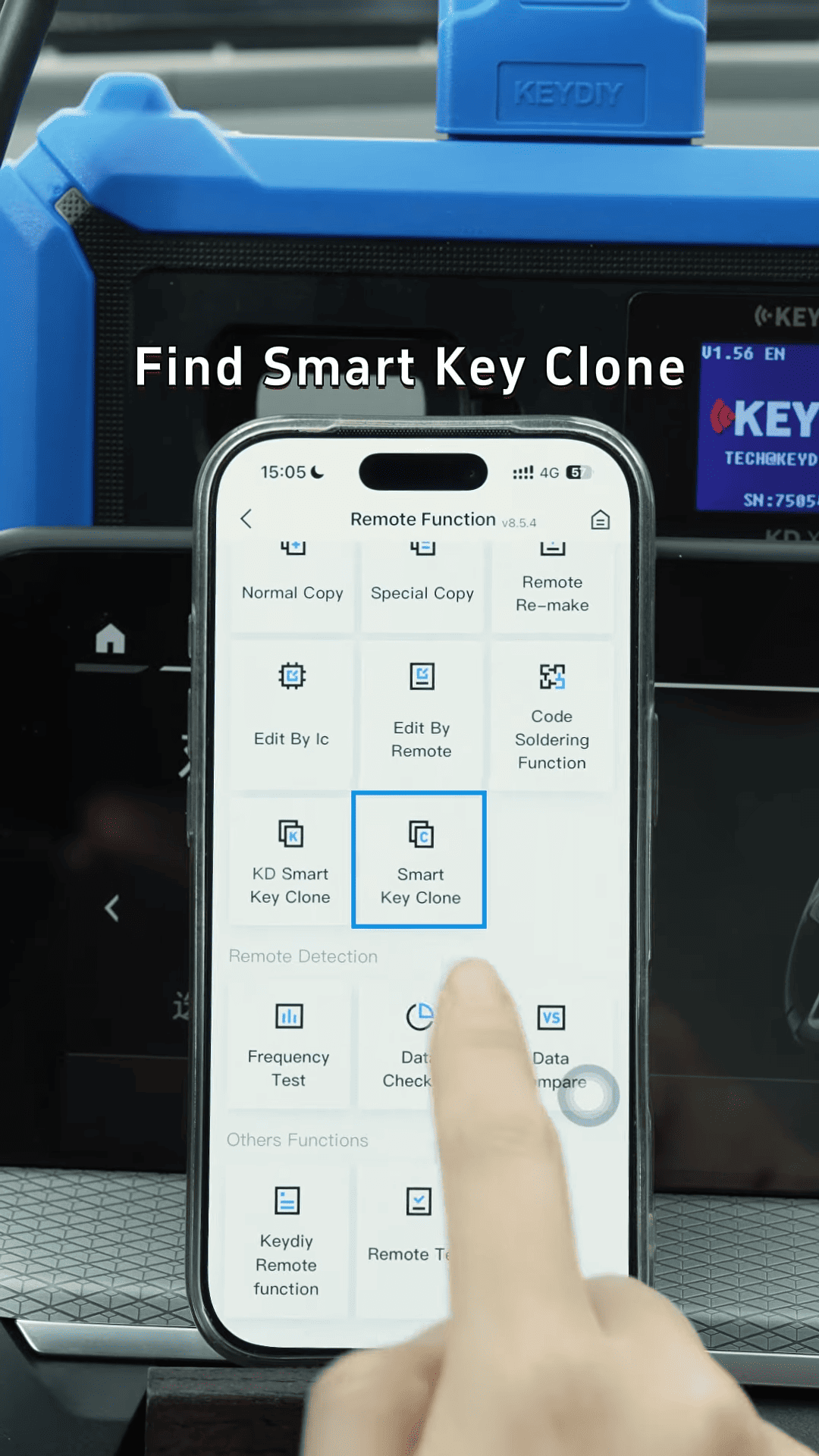

Select Smart Key Clone

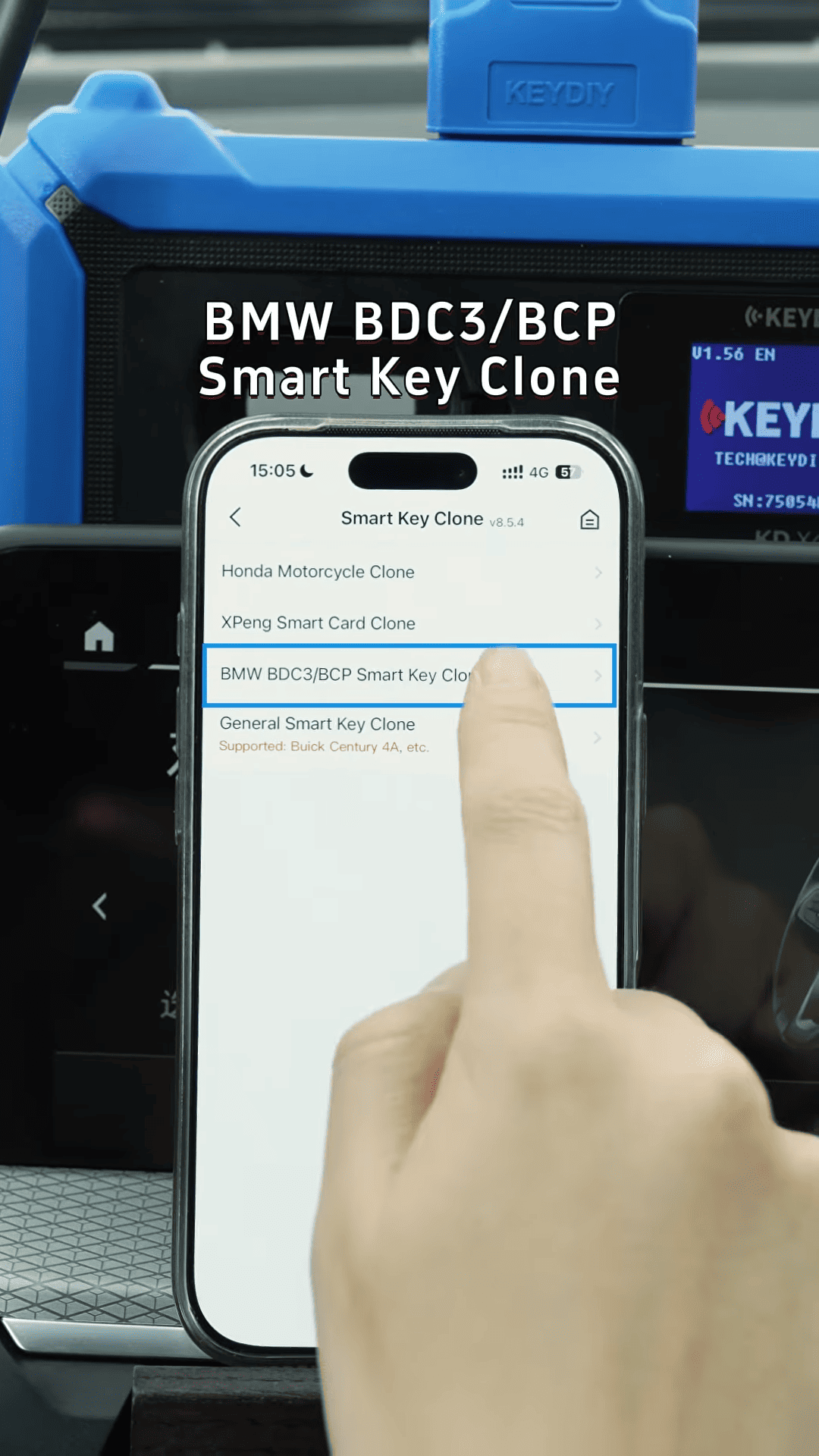

Choose BMW BDC3 BCP Smart Key Clone
The KEYDIY KD-X4 supports both BDC2 and BDC3 systems, including encrypted key cloning.
Step 2 Connect GODIAG Solder-Free Adapter
Prepare the original key:

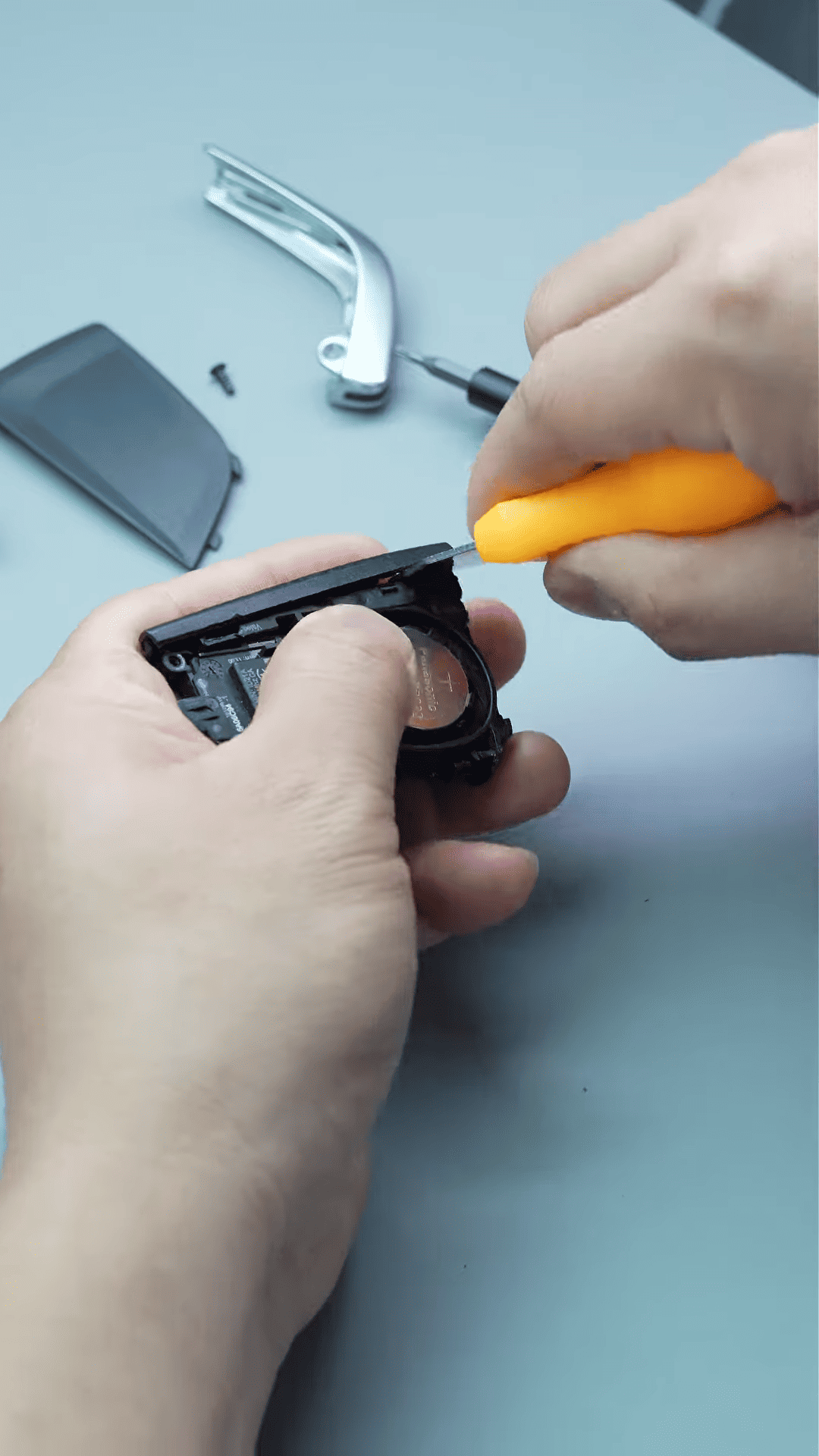

Disassemble the original key and remove the circuit board

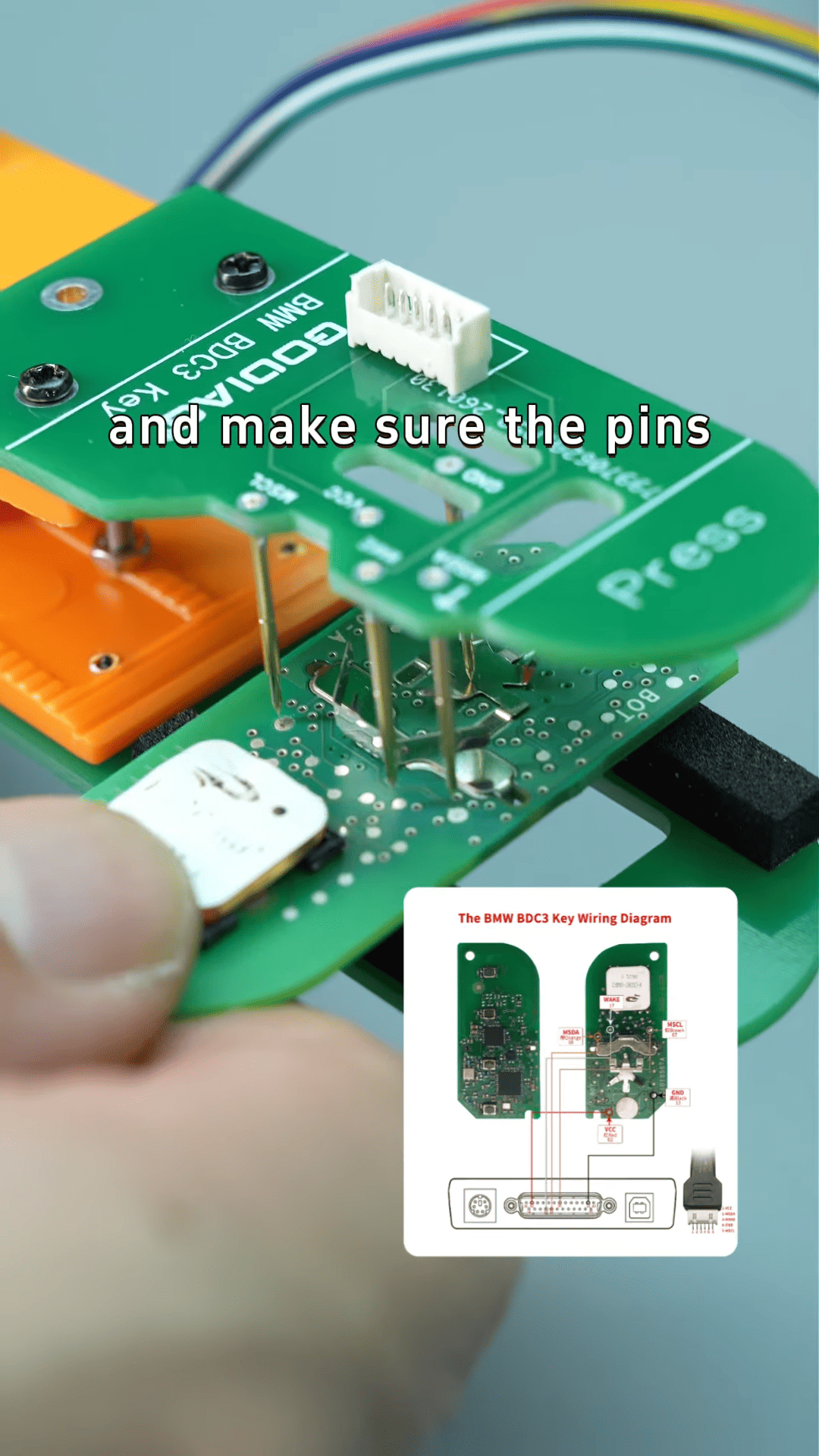

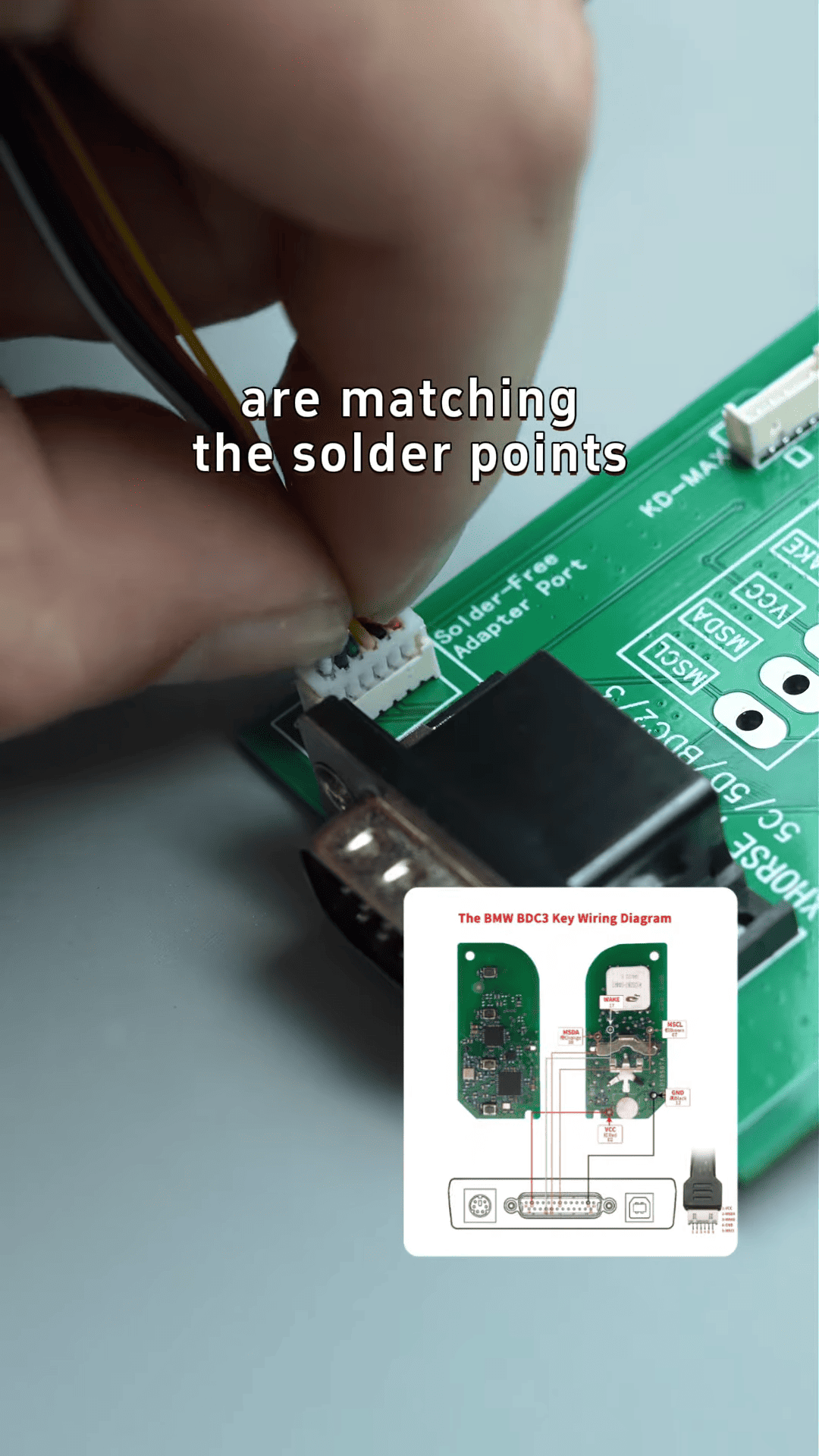

Clamp the GODIAG solder-free adapter for BDC2 BDC3 onto the board
Ensure all pins align correctly with contact points

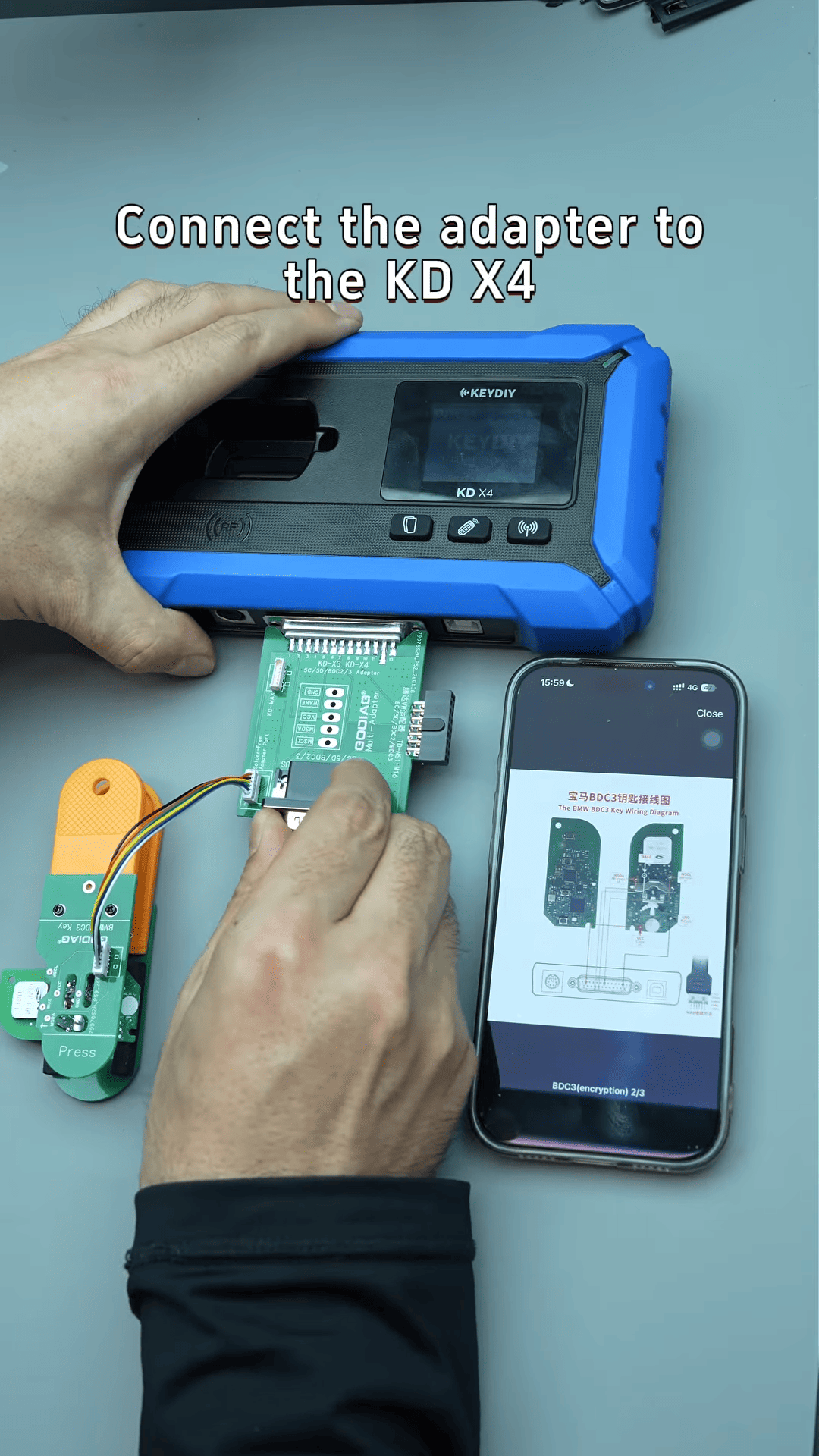

Connect the adapter to KD-X4 Locksmith’s Universal Tool
Using the GODIAG solder-free adapter, there is no need for soldering, which protects the circuit board from damage.
Step 3 Read Original Key Data
With the KEYDIY KD-X4:
Start reading key data
Confirm successful data acquisition

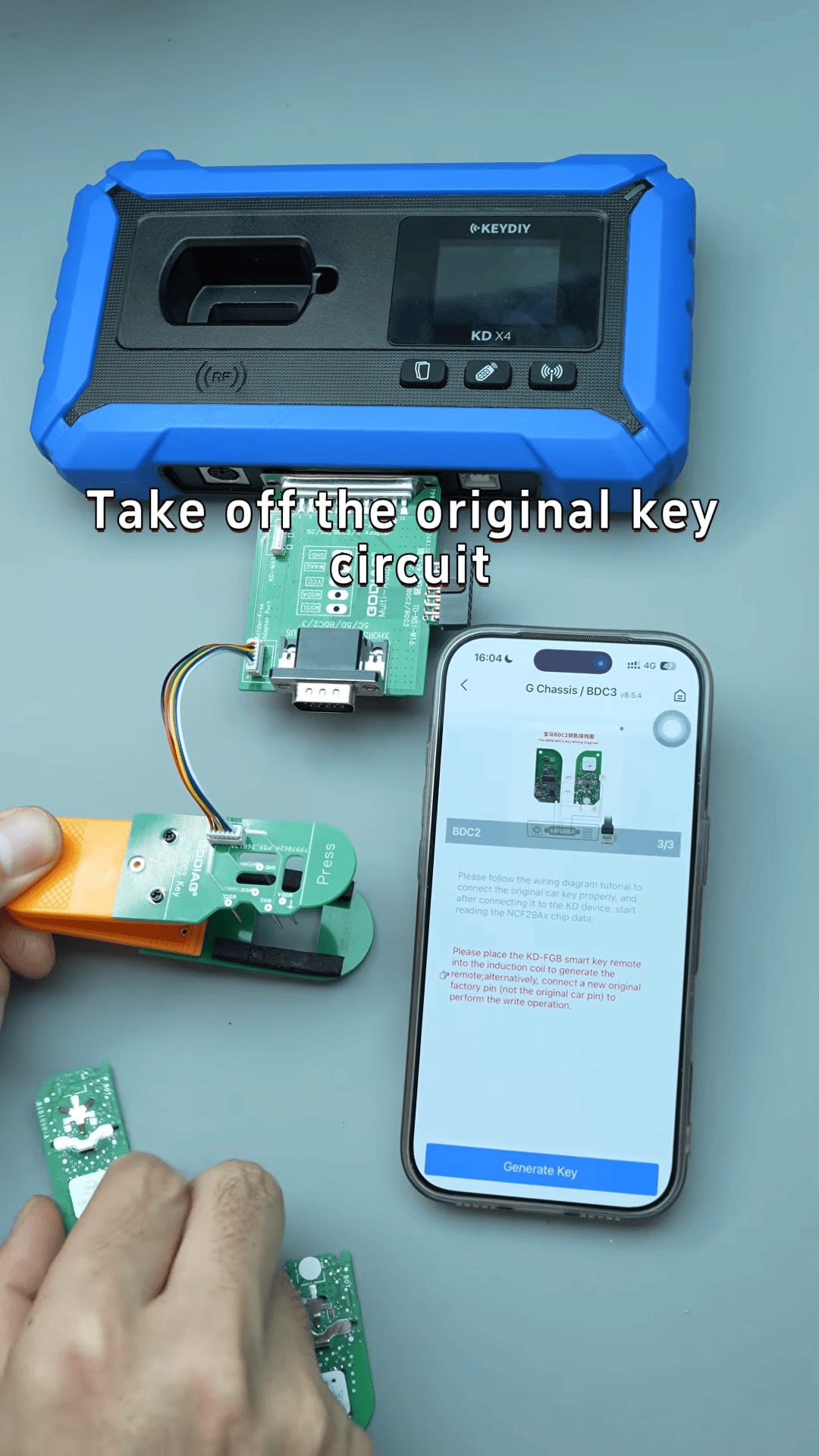

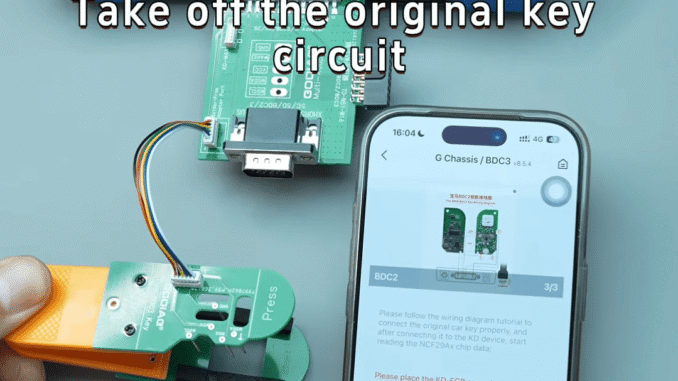

Remove the original key board after reading
This step ensures accurate cloning data for the new key.
Step 4 Generate New Key
Next, prepare the new key:
Attach the GODIAG solder-free adapter to the new key board
Select Generate Key on KEYDIY KD-X4
Choose OEM key if using original key type
Confirm and generate the new key
The KEYDIY KD-X4 will complete the cloning process automatically.

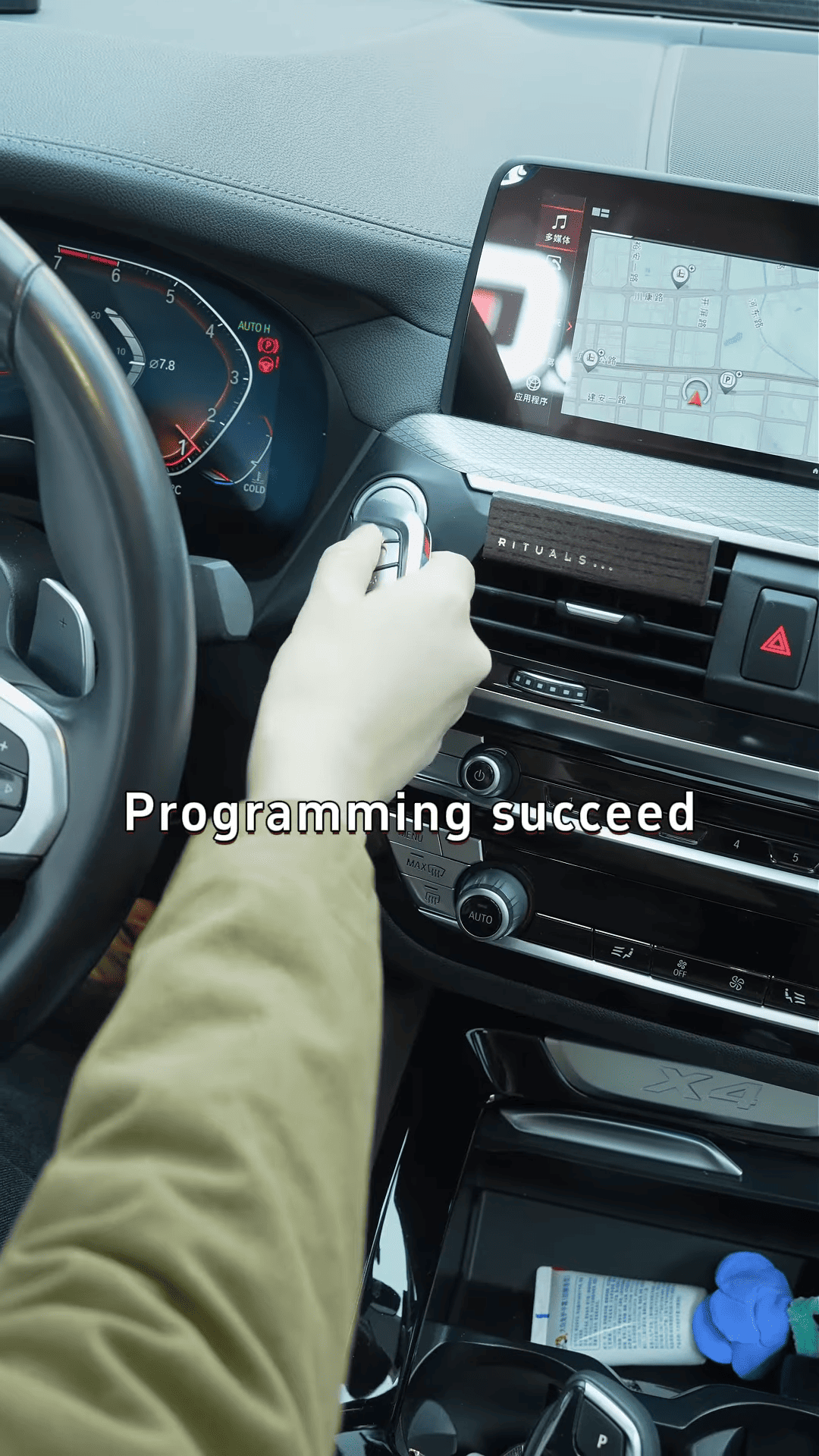

Step 5 Test the New Key
Install the new key into the vehicle:
Test remote functions
Verify engine start
Ensure full functionality
If completed correctly, the new key will work the same as the original.
Advantages of KEYDIY KD-X4 and GODIAG Solder-Free Adapter
Using KEYDIY KD-X4 with GODIAG solder-free adapter for BDC2 BDC3 offers:
- No soldering required
- Reduced risk of PCB damage
- Faster operation
- Supports encrypted BDC3 key cloning
- Professional solution for BMW locksmith work
KEYDIY KD-X4 key programmer combined with GODIAG solder-free adapter makes BMW BDC3 key cloning simple, safe, and efficient. This solution is ideal for locksmiths handling modern BMW immobilizer systems.
