This guide will demonstrate how to disassemble Audi A3 MQB49 5D Smart Key and describe each part. Whether you’re dealing with all-keys-lost scenarios, key duplication, or diagnostics, a proper teardown saves time and avoids damage. But beware – these keys are delicate, and mistakes can brick them.
Tools mentioned: VVDI2 (affiliate link), Autel IM608, OBDSTAR.
Steps
Always work in a static-free environment with proper tools like plastic pry tools, screwdrivers, and a multimeter.
Here’s how to open a MQB49 5D key safely:

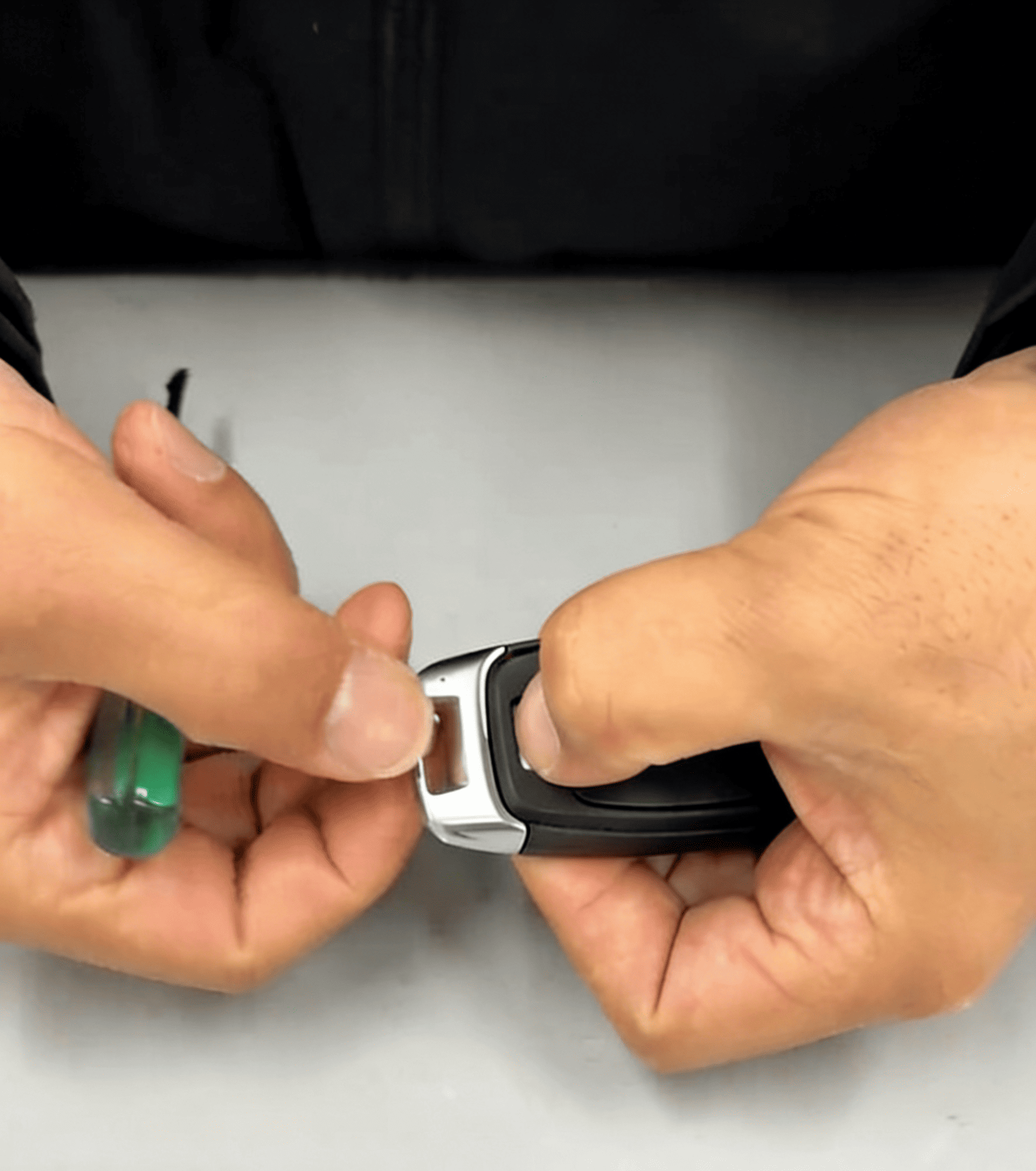

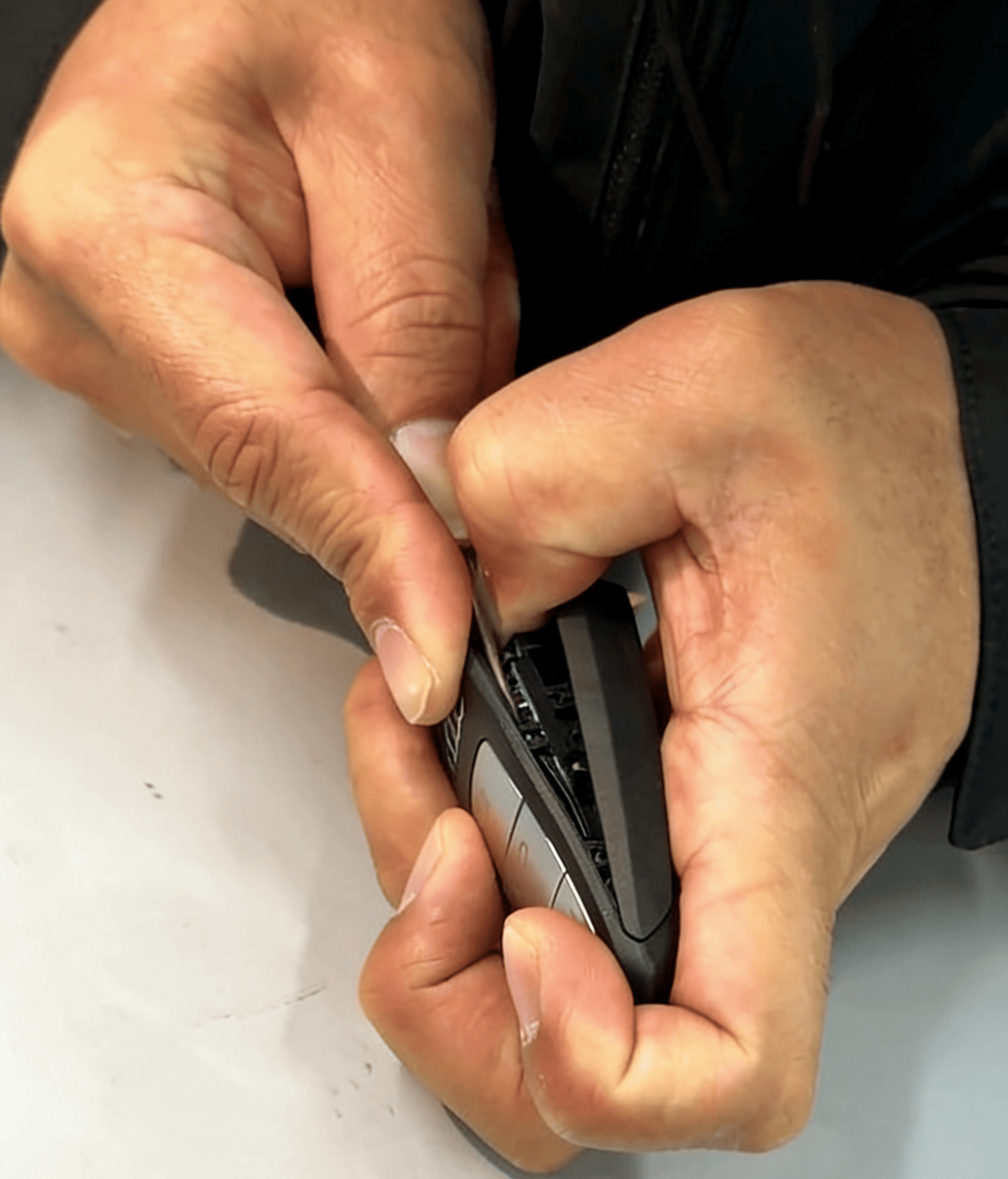

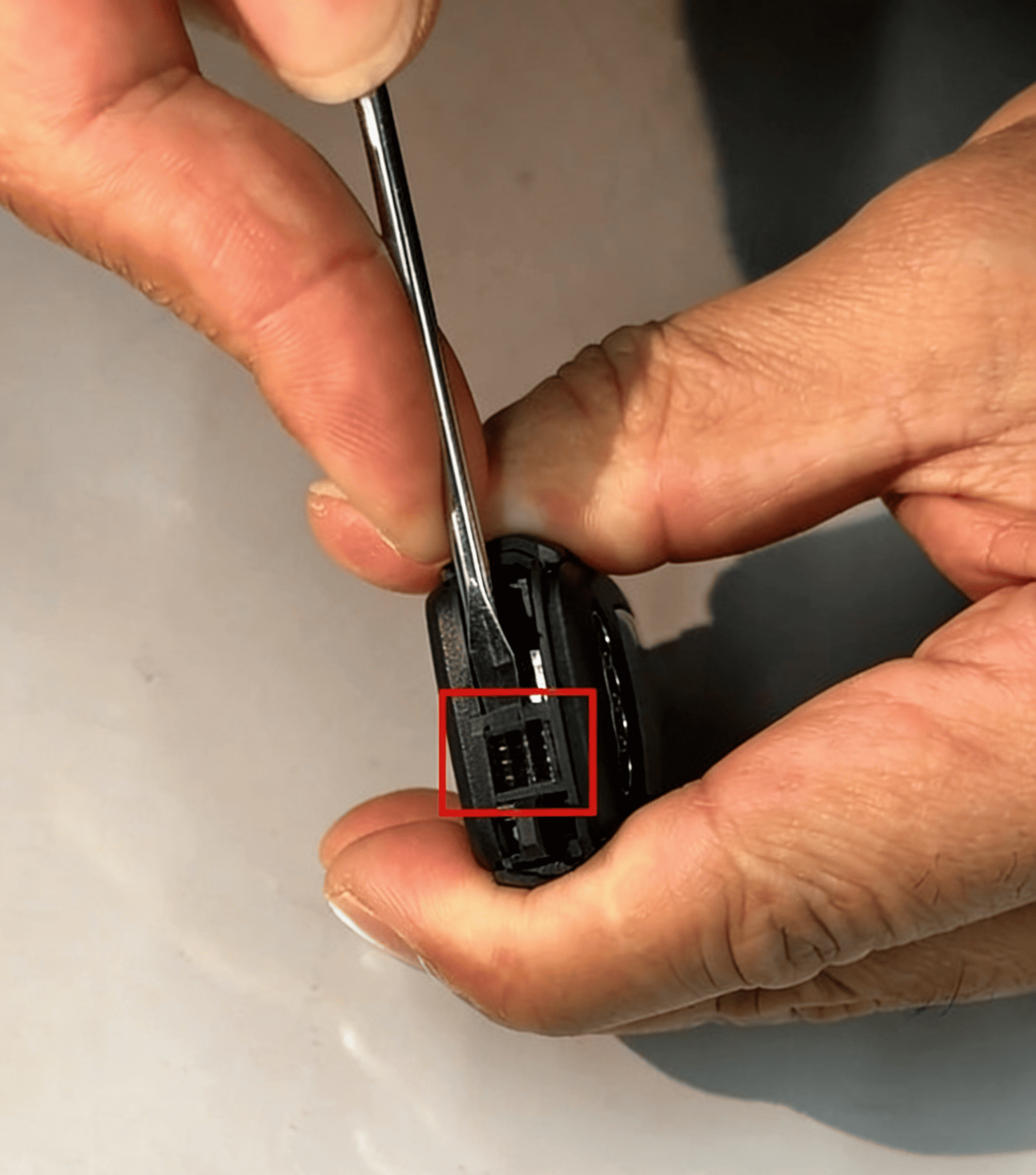

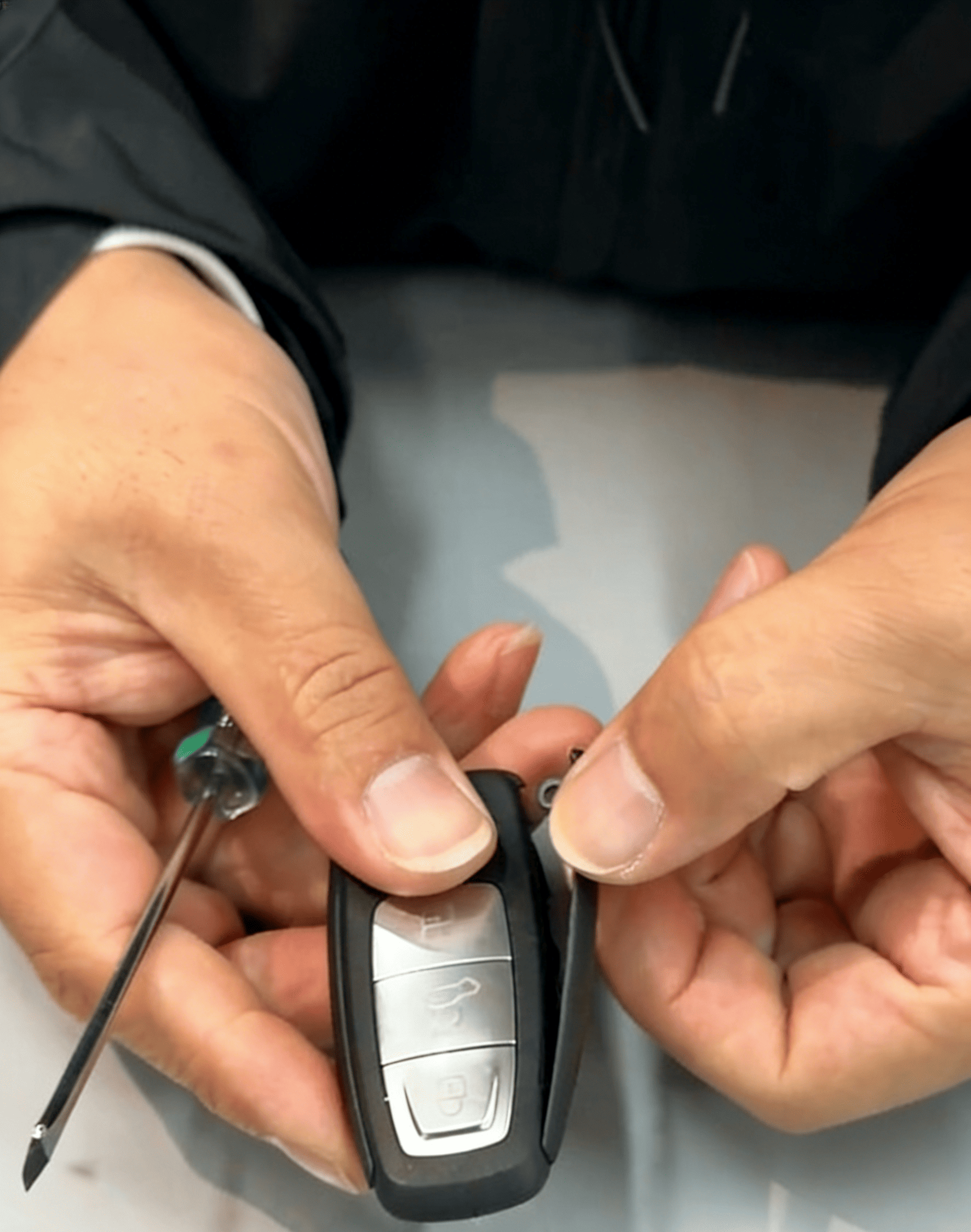

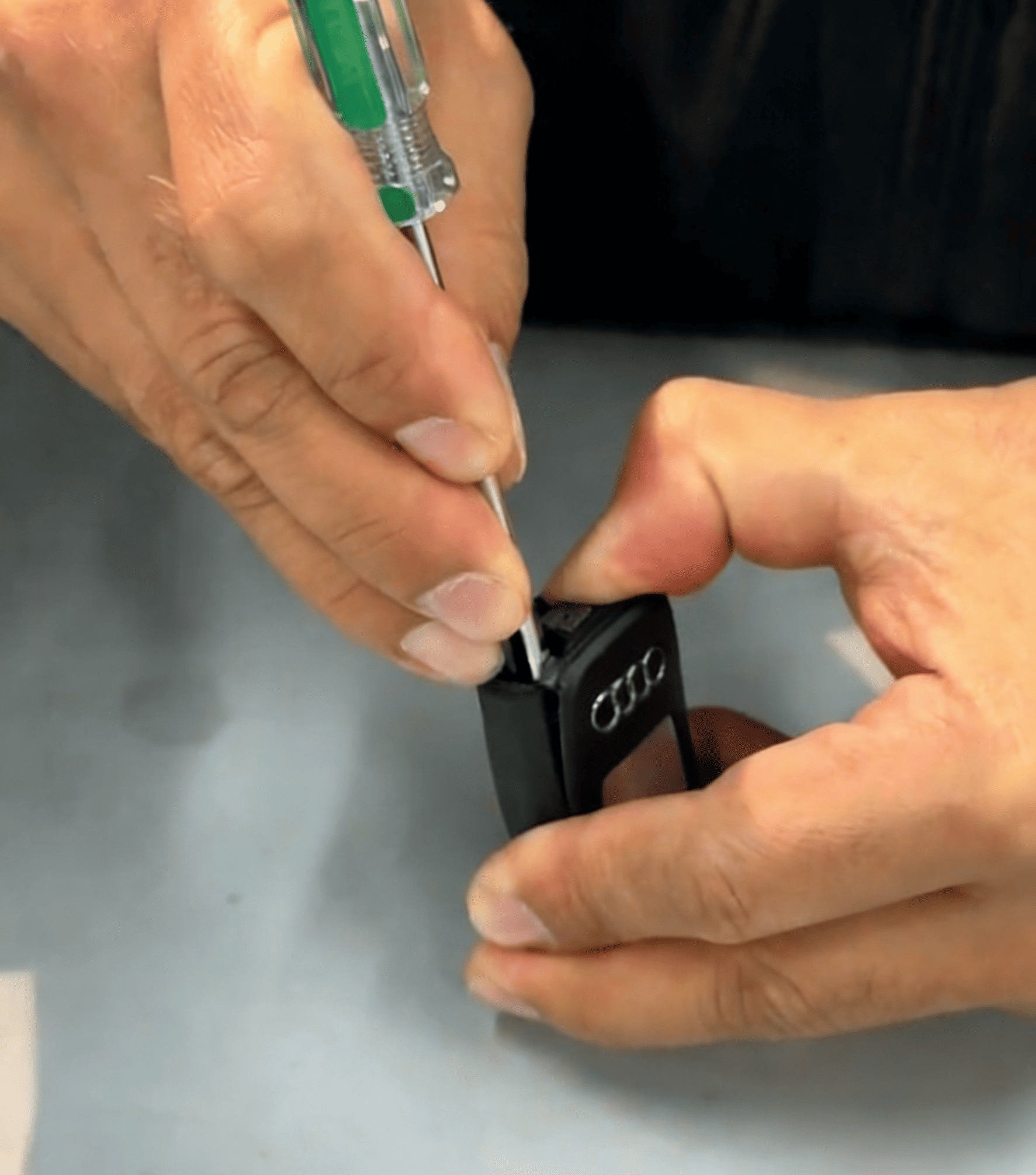

1. Separate the Shell: Locate the seam on the side of the key fob. Gently insert a plastic pry tool and twist to pop it open. Avoid metal tools to prevent scratches or shorts.

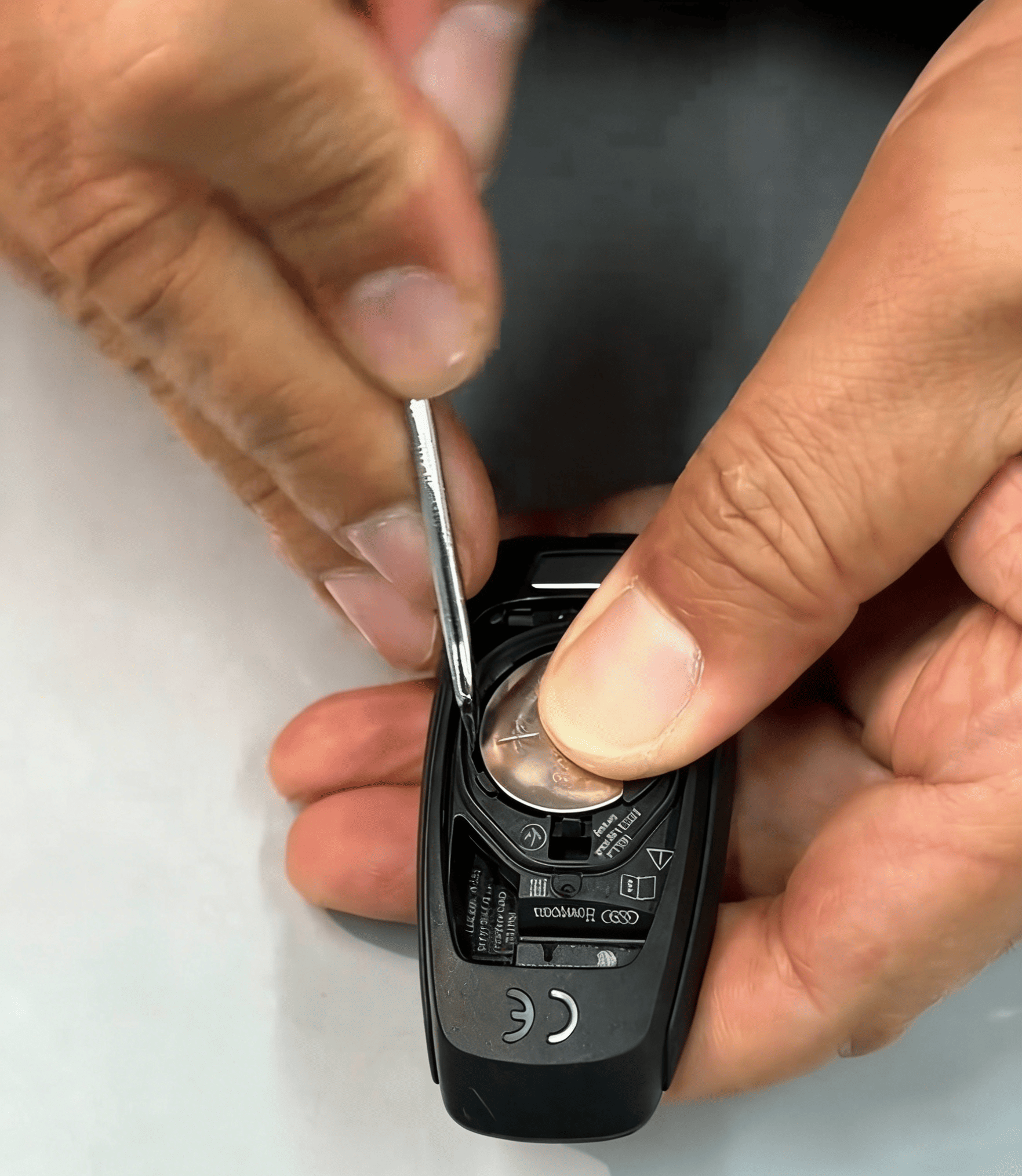

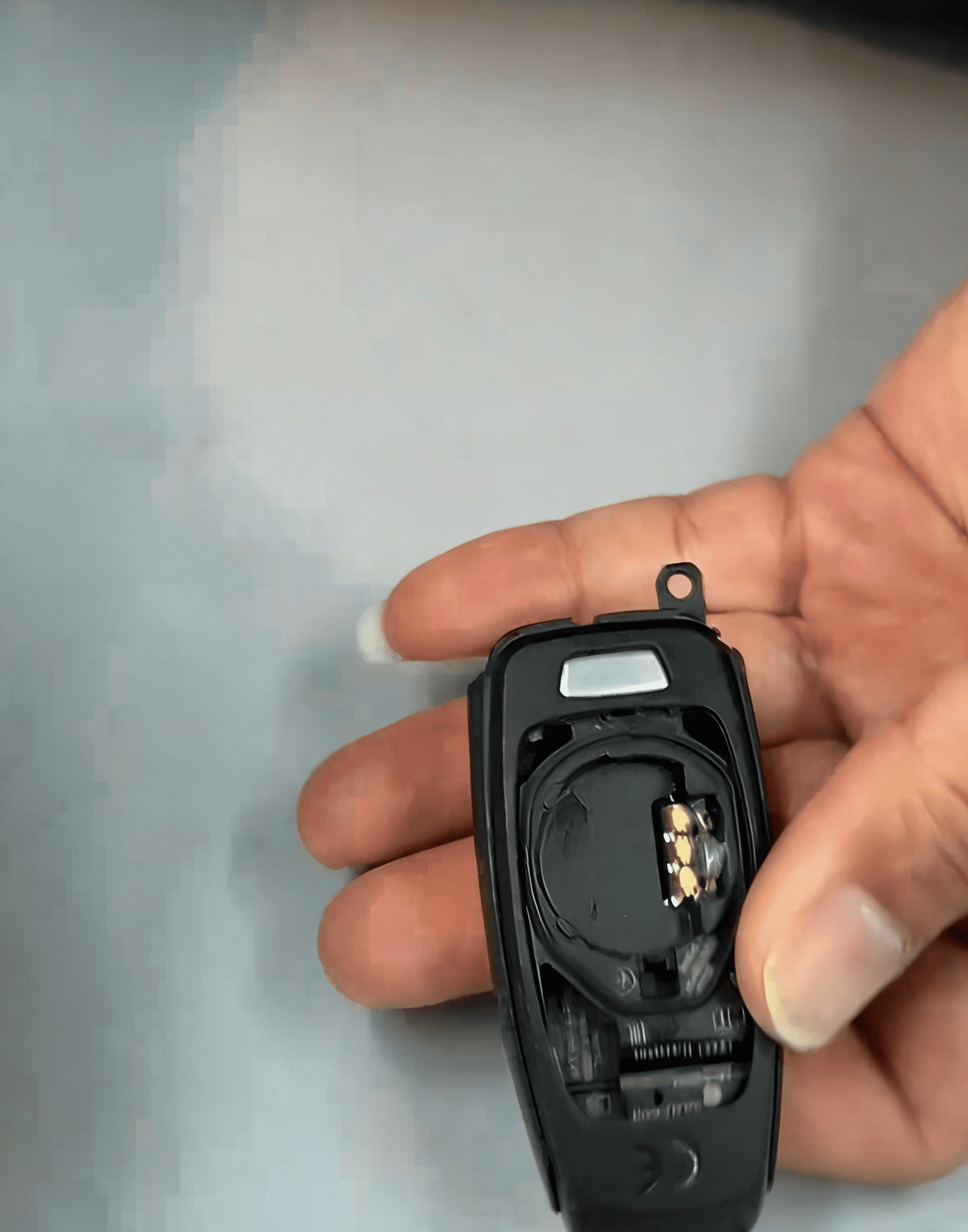

2. Remove the Battery: Slide out the CR2032 battery. Check voltage – it should be around 3V. Low battery can cause programming failures.

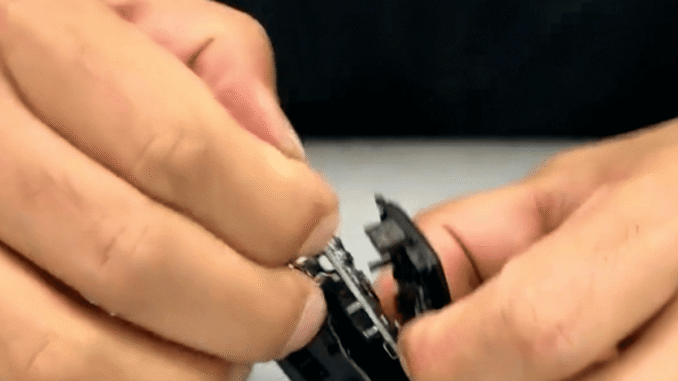

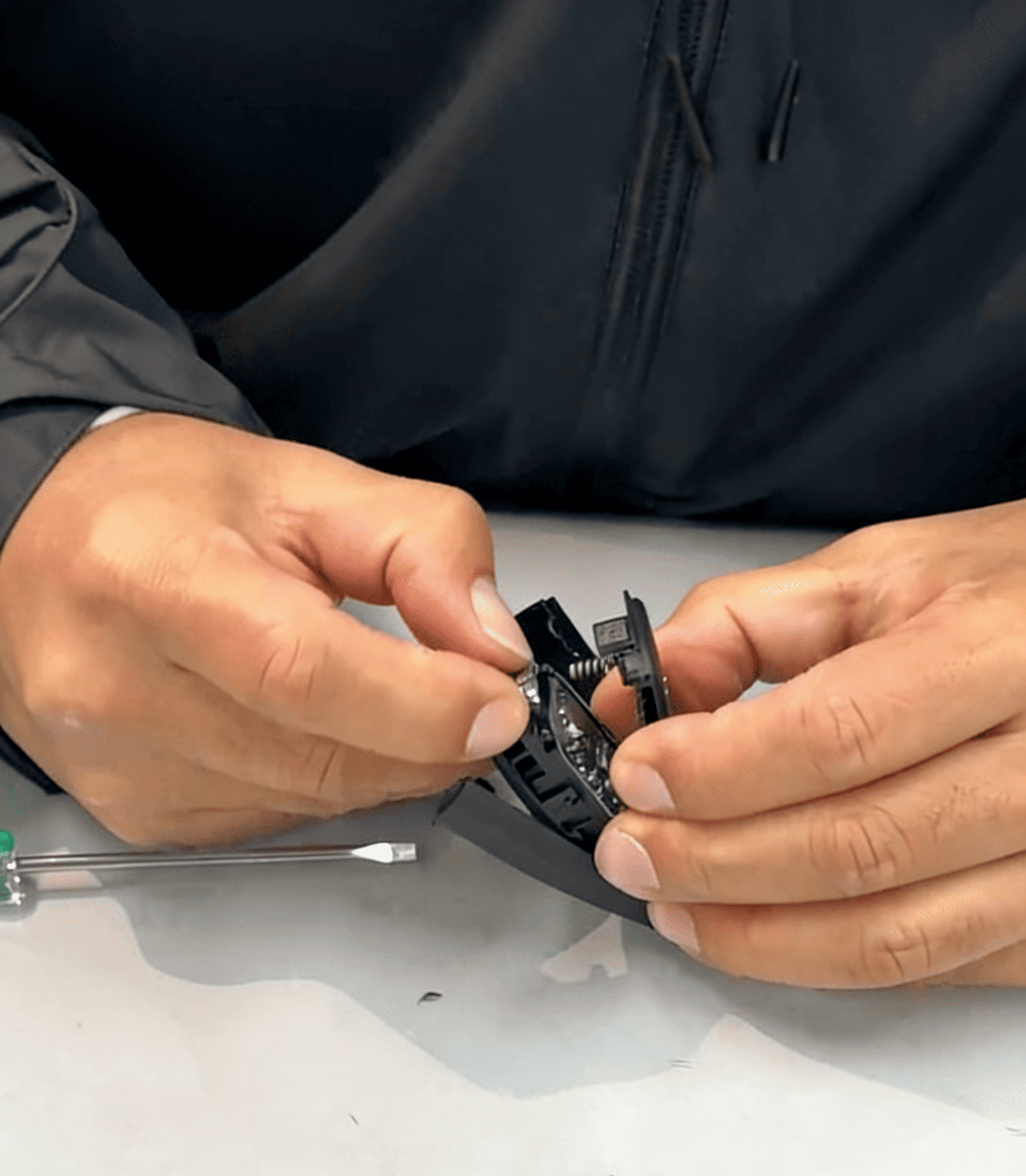

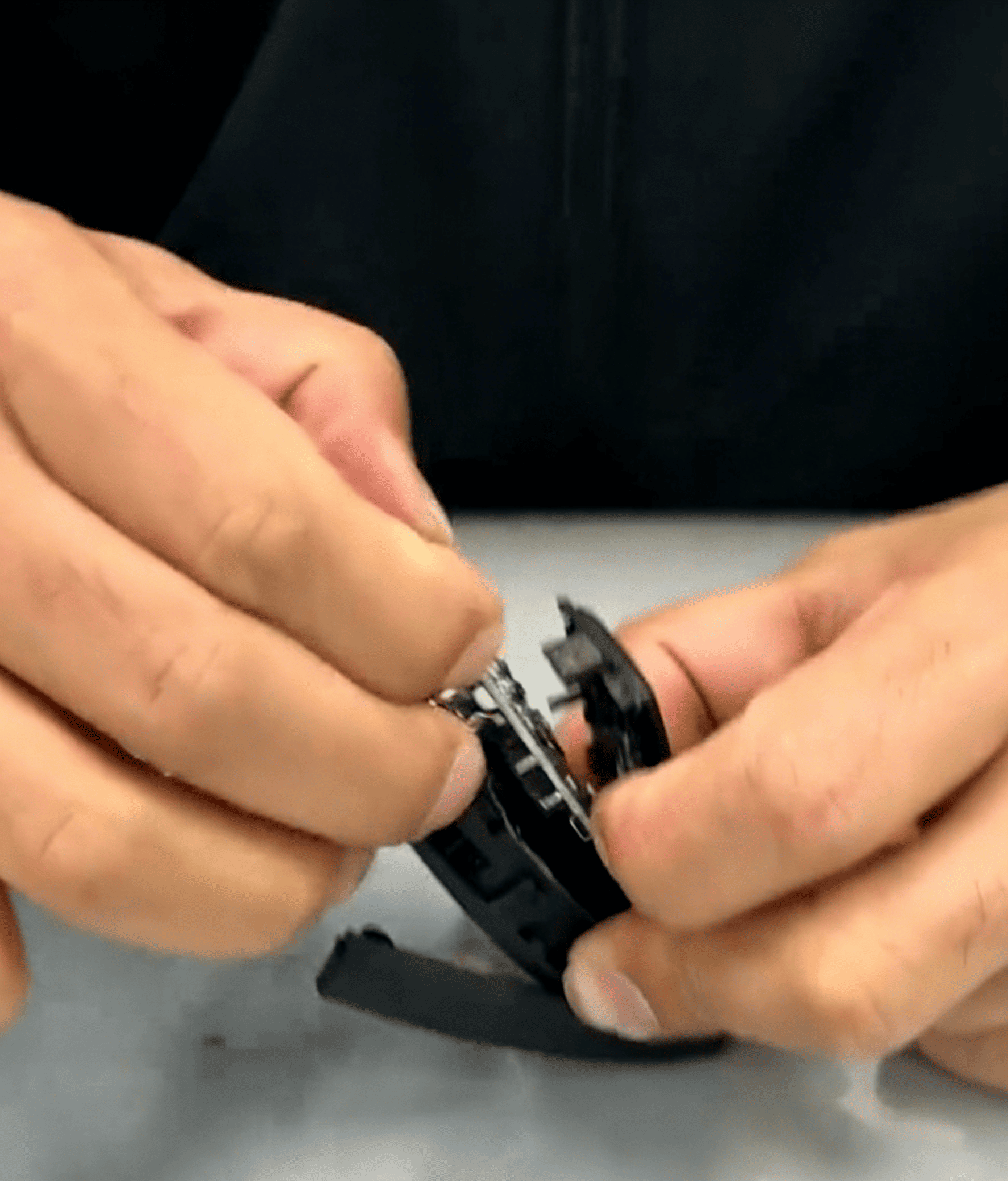

3. Access the PCB: Carefully lift the circuit board. Note the antenna coil and button contacts – they’re fragile.
4. Identify Key Components: Once open, you’ll see the 5D chip (main immobilizer), MCU (microcontroller), EEPROM (for data storage), crystal oscillator (for timing), and wiring traces.
Key Components Explained
The Golf 8 smart key’s internals are a masterclass in compact engineering.
Here’s what you’ll find:
5D Chip: The heart of the key handles transponder communication with the vehicle’s immobilizer. It’s encrypted and tied to the car’s ECU.
MCU (Microcontroller Unit): Processes button presses, remote signals, and security protocols. Often a NXP or Infineon chip.
EEPROM: Stores key data like ID codes and pairing info.
This is where programming happens – read/write carefully to avoid corruption.
Crystal Oscillator: Ensures precise frequency for RF communication (usually 433MHz or 868MHz in Europe).
Antenna Coil: For proximity detection in keyless entry systems.
Wiring Traces: Thin copper lines connecting everything. Solder points are critical for mods, but one wrong connection can disable the key.
Once disassembled, programming a new or duplicate key involves tools like VVDI2, Autel IM608, or OBDSTAR.
Key steps:
Read Data: Use a key programmer to extract EEPROM data from the original key.
Generate New Key: Clone or generate a new 5D chip with matching ID.
Pair to Vehicle: Connect via OBD and sync with the immobilizer. For Golf 8, you may need PIN extraction.
Modifications like frequency changes or button remaps are possible but require expertise – wrong EEPROM edits can lock the key permanently.
Safety Warnings: Discharge static electricity before handling.
Back up original data.
Use compatible tools to avoid bricking.
