In this guide, KEYDIY KD-X4 is used together with a BDC2 test platform and adapter to perform BMW BDC2 key duplication.

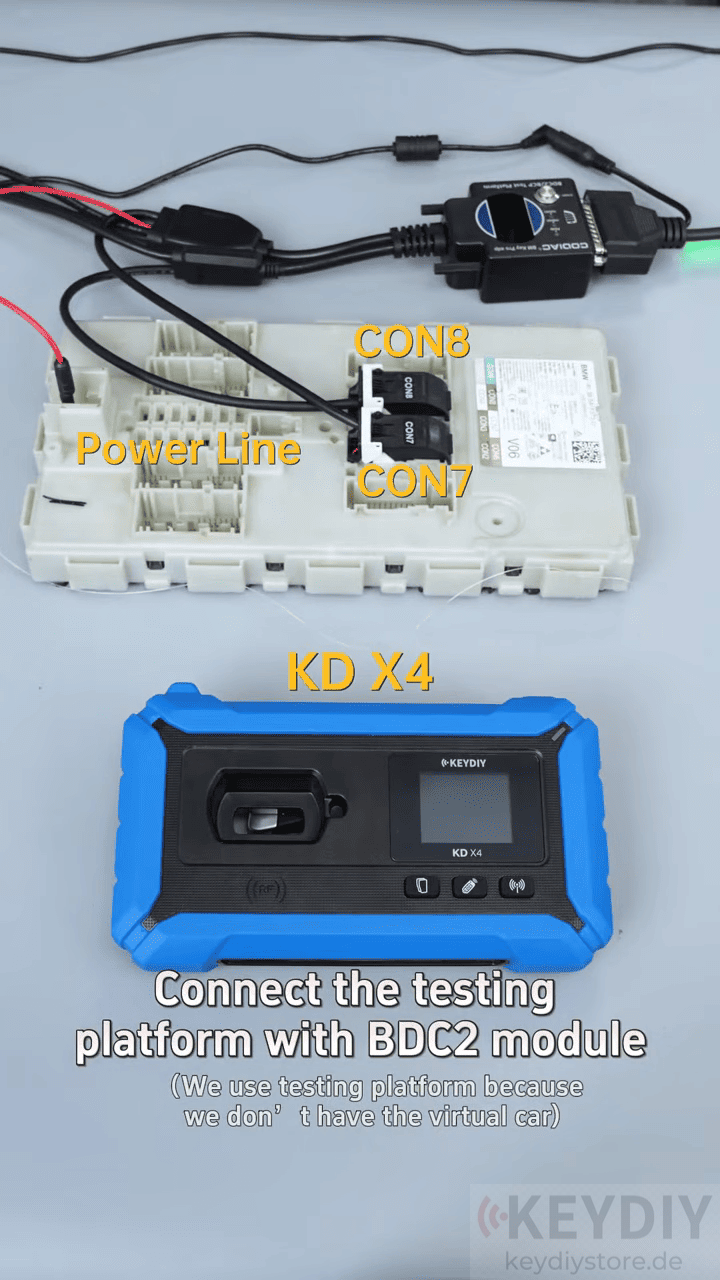

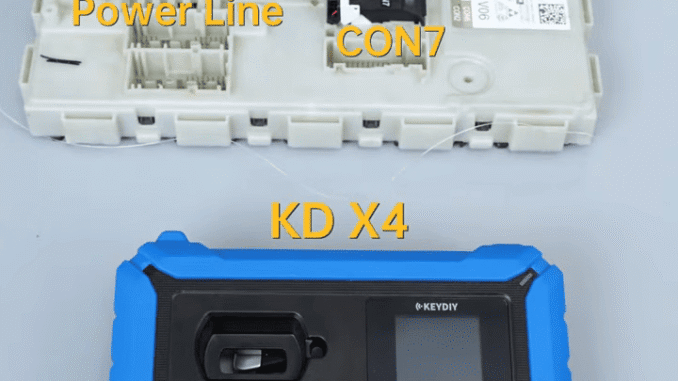

Before starting, connect the BMW BDC2 module to a compatible testing platform and power supply. The KD-X4 is then connected to begin the immobilizer programming procedure.
Enter IMMO Programming → BMW → Select by Type → BDC2

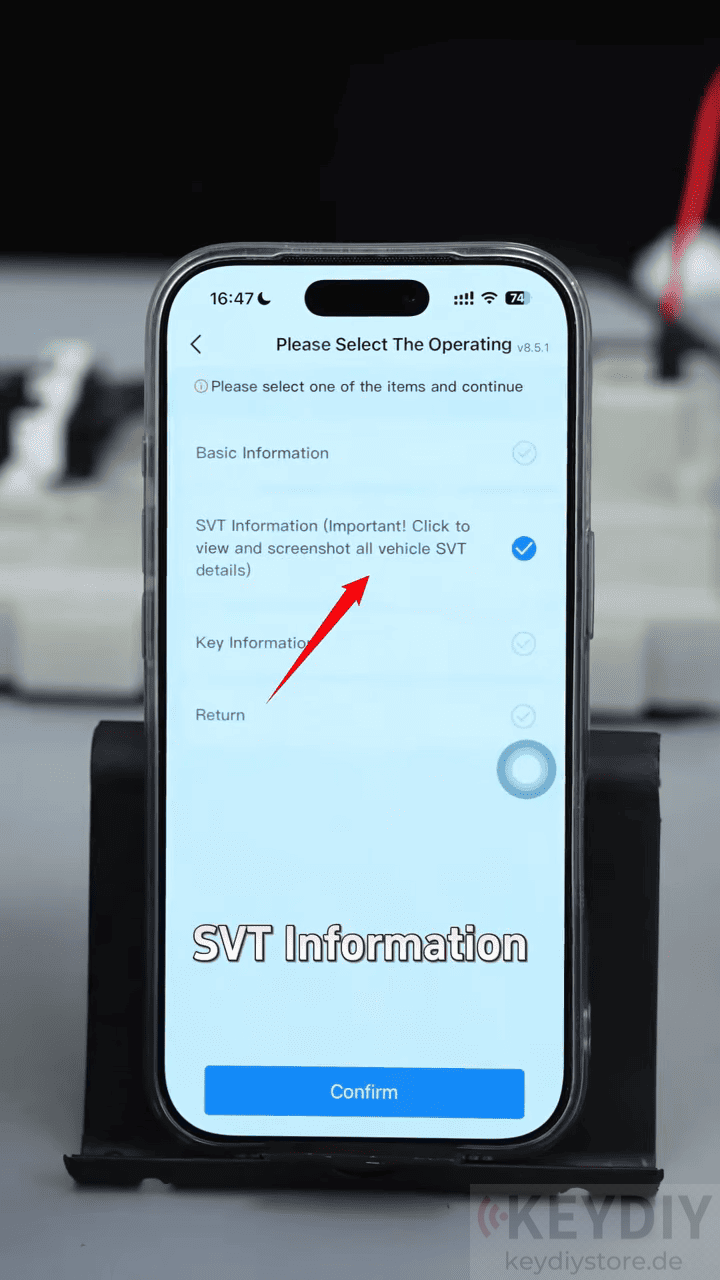

The system first reads vehicle information and current key data. After the information is successfully retrieved, it is important to save the backup file for later use during the programming process.

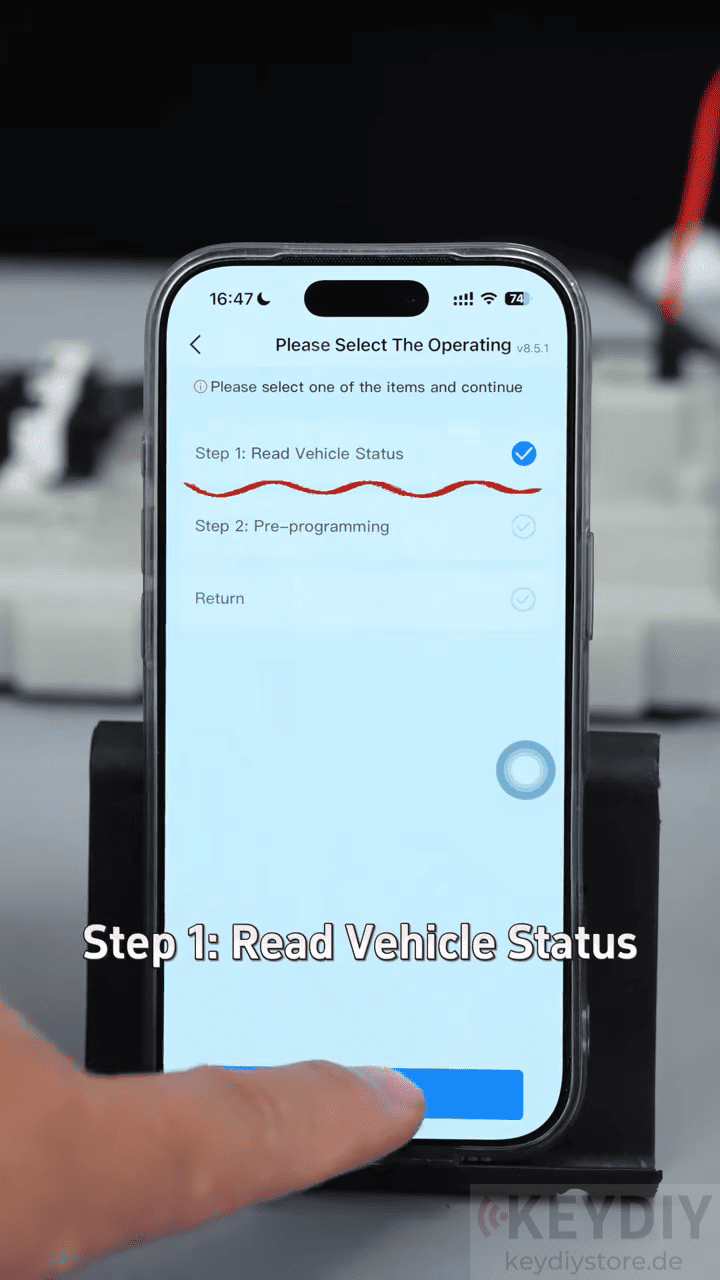

Reading Vehicle Data

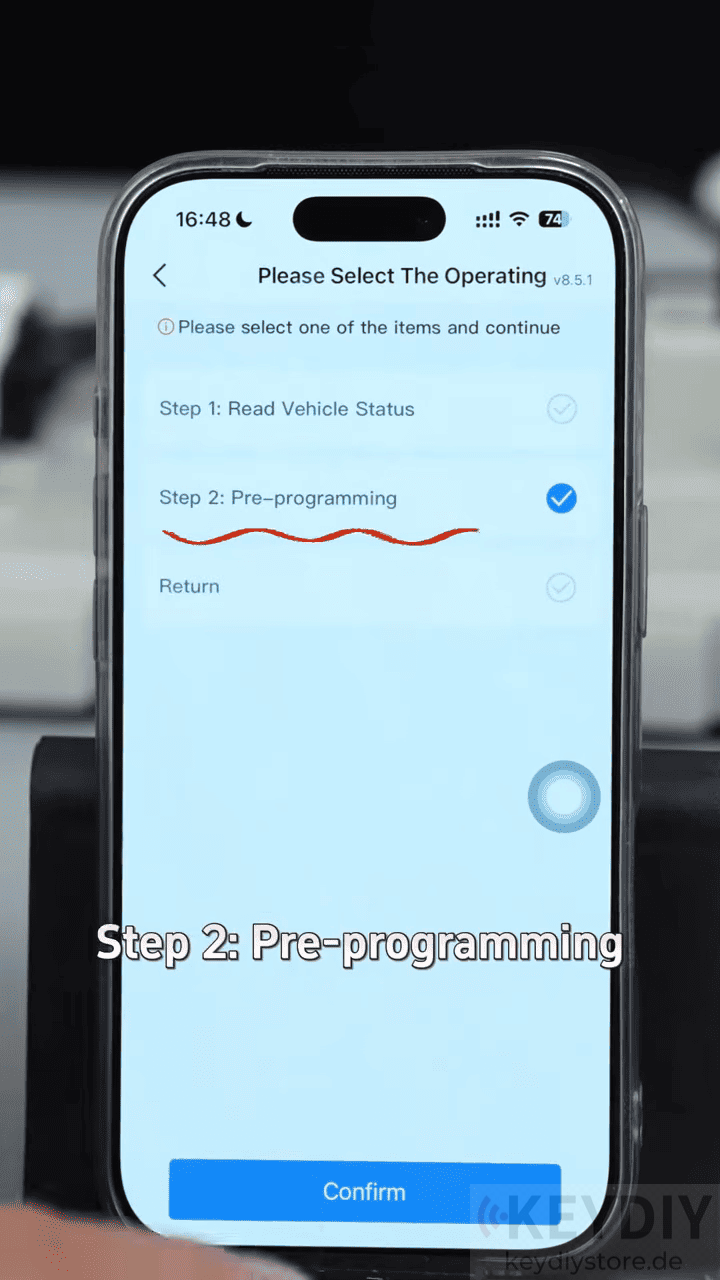

The first stage involves collecting vehicle status information and key data from the BDC2 module. The software guides the user through the process and creates a backup of the original vehicle information.
Connecting the BDC2 Adapter

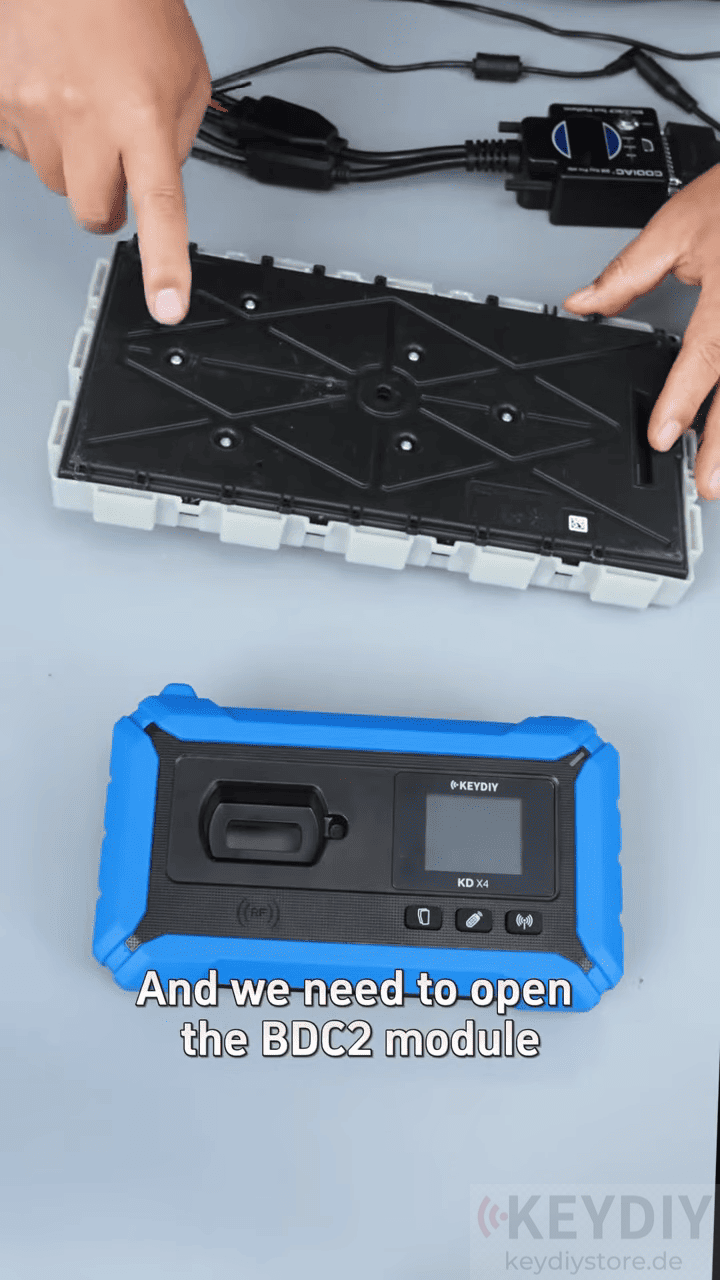

To access the BDC2 module, the housing must be opened by removing the screws and protective covers.

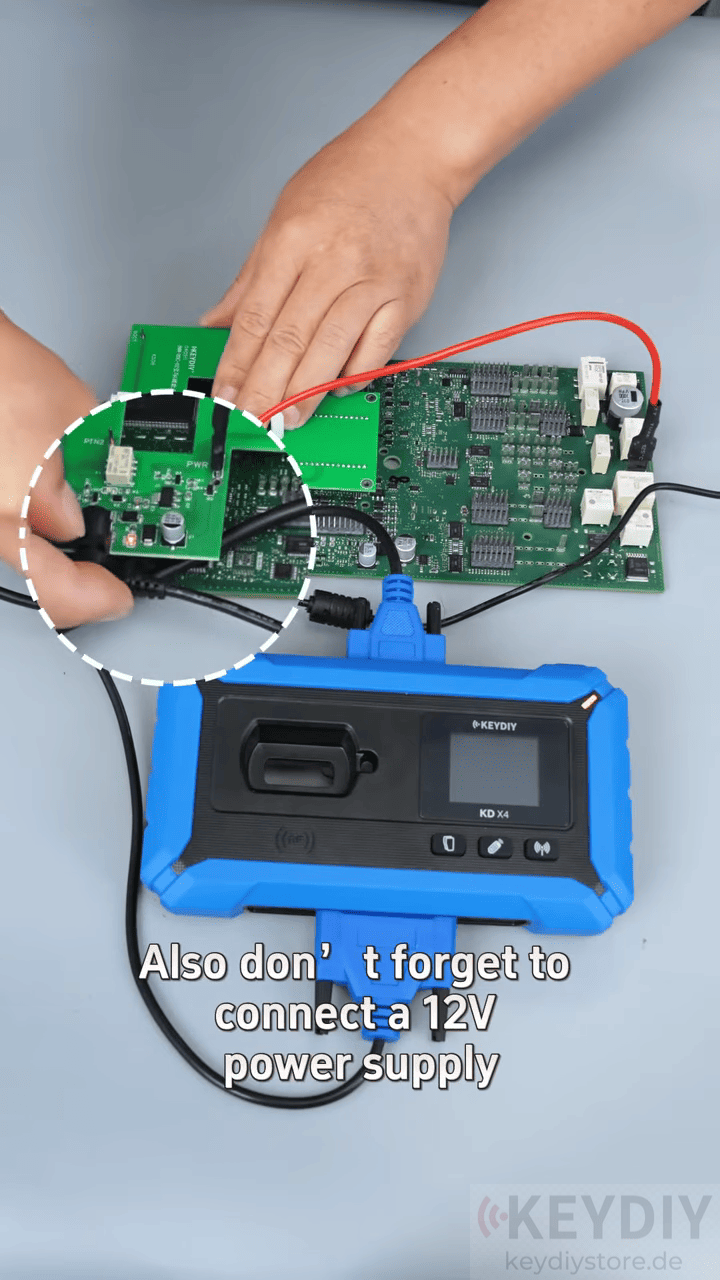

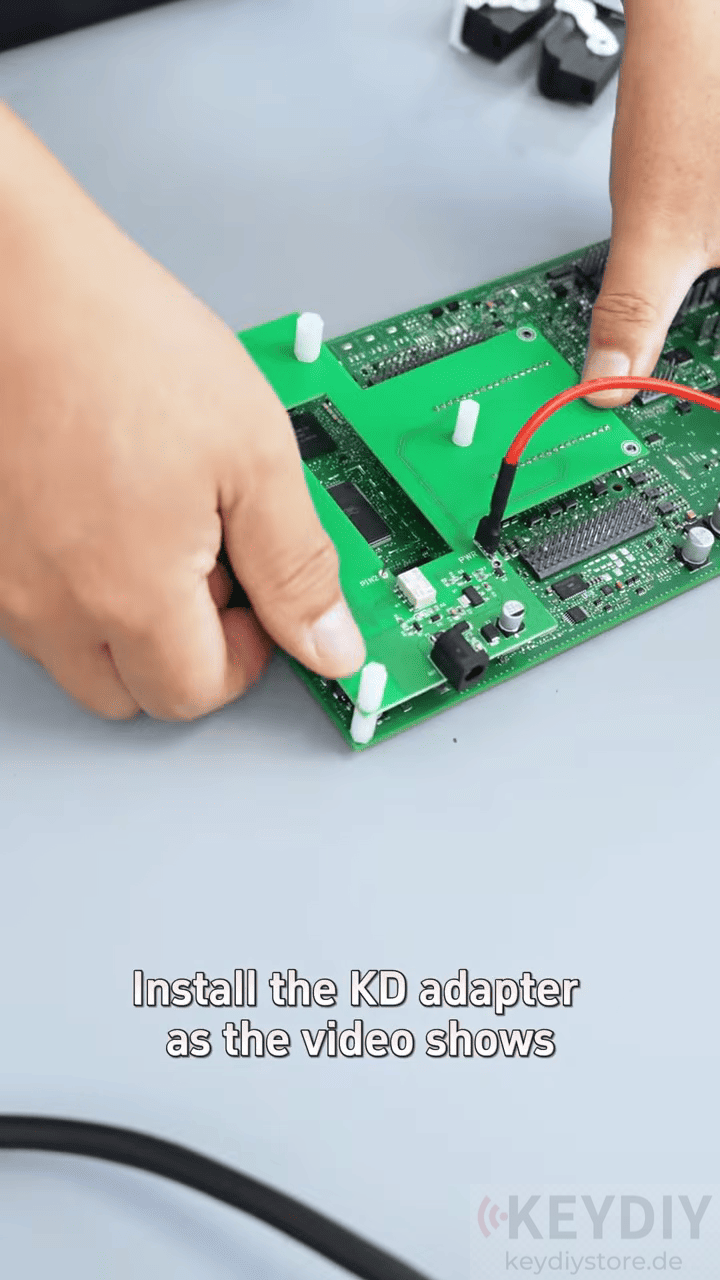

Following the wiring diagram provided by KD-X4 software, install the dedicated KD adapter onto the BDC2 module and connect the required wires to KD-X4 Locksmith’s Universal Tool. A stable 12V power supply is also required throughout the procedure.
Generating a BMW BDC2 Dealer Key

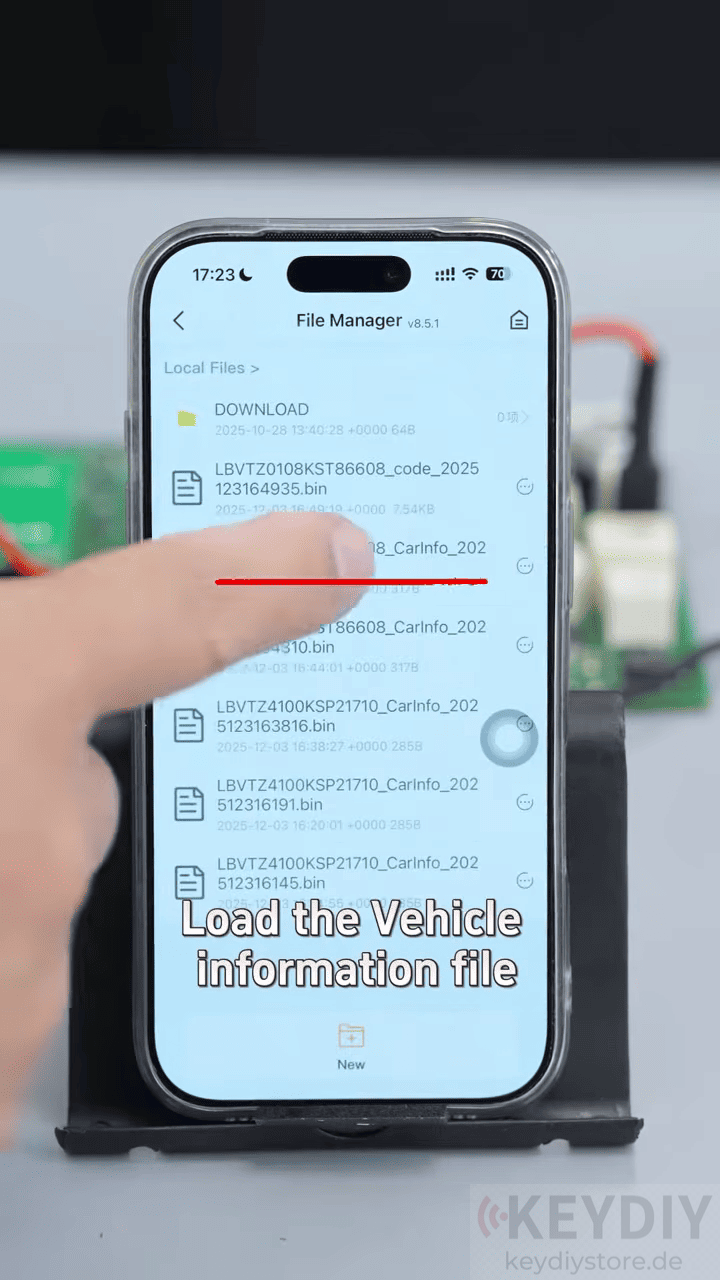

After loading the previously saved vehicle data files, the KD-X4 key programmer converts and processes the security information required for key generation.

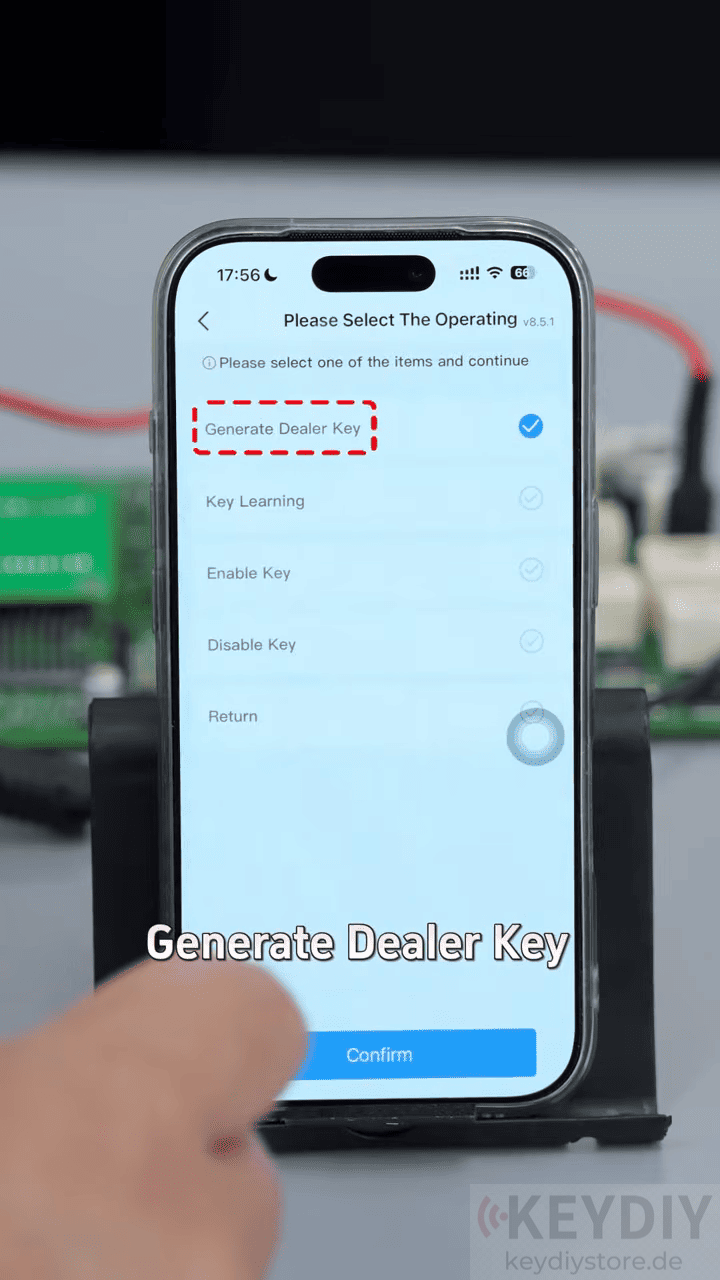

The software then enters the dealer key generation stage, where users can select an available key position and create a new dealer key based on the vehicle’s immobilizer data.

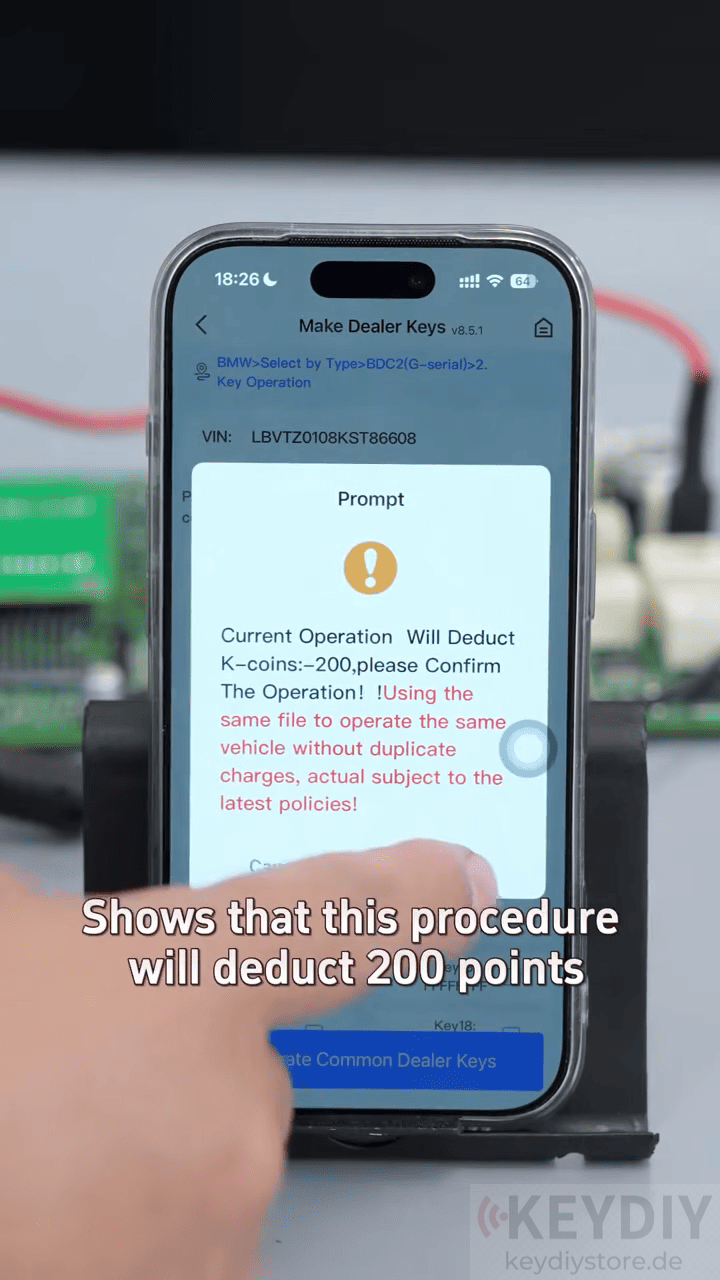

During this process, the system may consume service points as required for key generation.

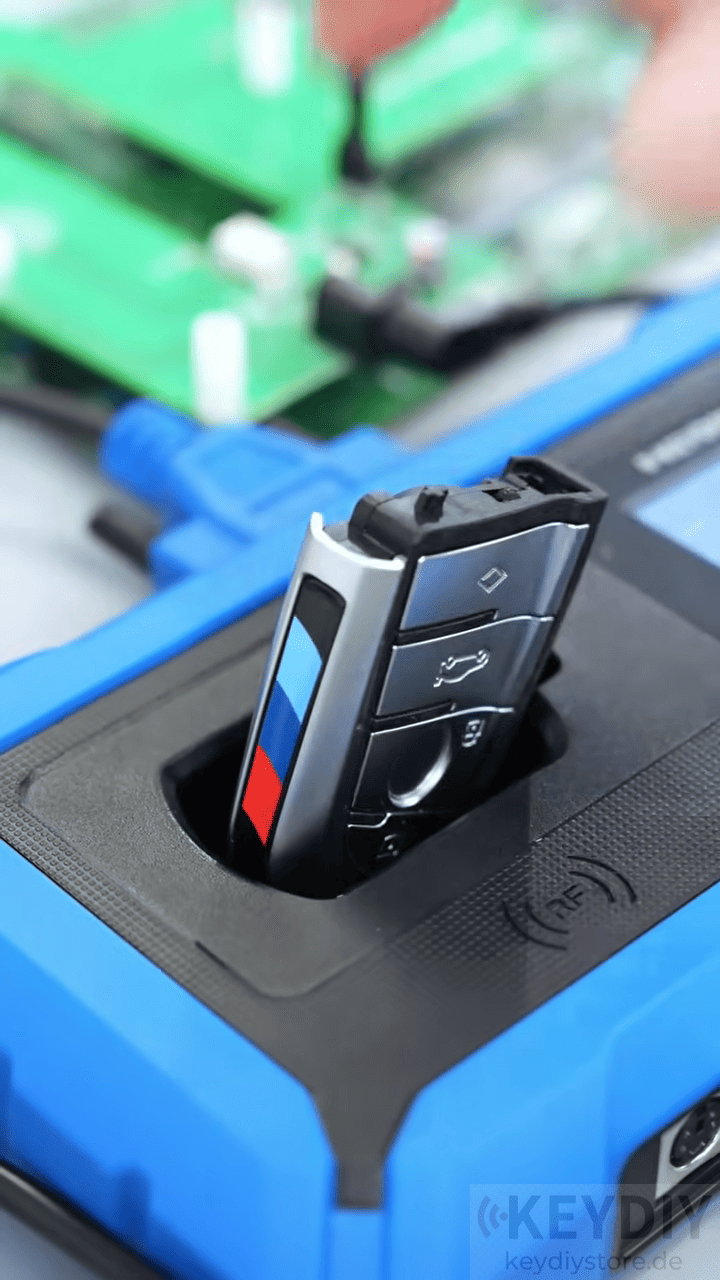

A new blank key is then placed into the programming area, and the KD-X4 automatically writes the necessary data to create a usable BMW dealer key.
Key Learning and Verification
The newly generated key is synchronized with the vehicle system, allowing the immobilizer and remote-control functions to operate correctly.

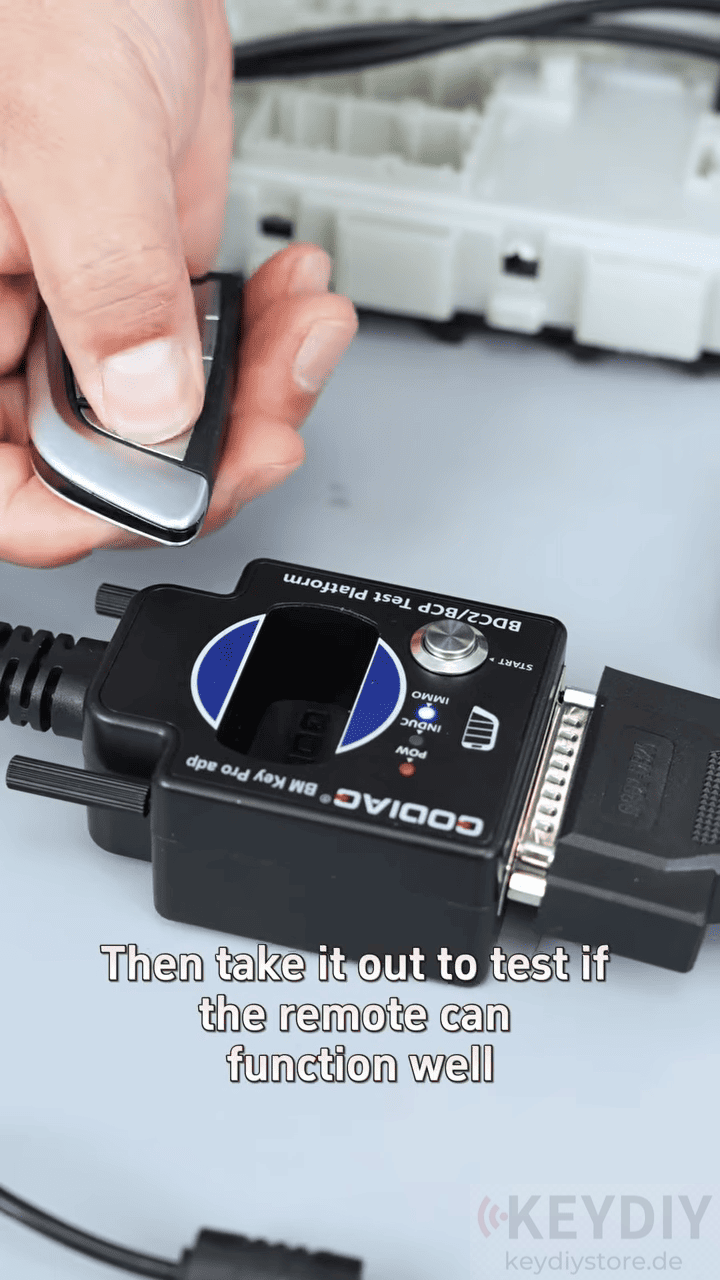

After programming is complete, test the key’s lock, unlock, and vehicle-start functions to verify successful duplication.
BMW BDC2 key duplication does not have to be complicated. By following the guided process provided by KEYDIY KD-X4 key programmer, technicians can read vehicle data, generate dealer keys, and complete key learning with confidence. odern BMW key programming and immobilizer service.
